•  The climate control unit displays the operation and setting status of the air conditioner system settings.

•  The climate control unit outputs the input signals from each sensor and the operation signal from the operation panel to the dash-electrical supply unit.

•  A logic-type climate control unit has been adopted.

•  The climate control unit consists of a control panel and a control unit.

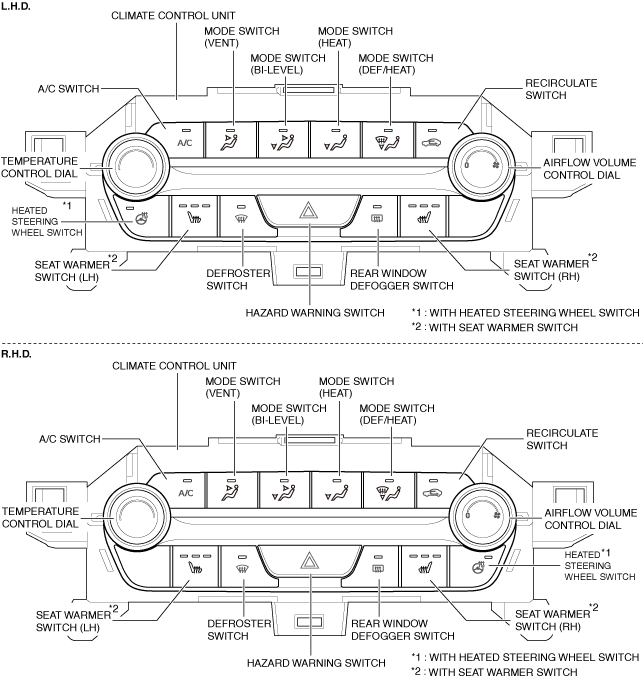

•  The switches and dials shown in the figure are positioned on the control panel.

•  For the climate control unit operation, refer to the [MANUAL AIR CONDITIONING SYSTEM [MANUAL AIR CONDITIONER]]. (See MANUAL AIR CONDITIONER SYSTEM [MANUAL AIR CONDITIONER (E)].)
