DASH-ELECTRICAL SUPPLY UNIT [MANUAL AIR CONDITIONER]

id0740a2006300


Purpose/Function

•  The dash-electrical supply unit controls the following systems based on signals from each sensor/switch.
―  Air conditioner system
―  Room light control system
―  Heated steering wheel system (With heated steering wheel)
―  Seat warmer system (With seat warmer)

Structure/Construction

•  The dash-electrical supply unit is equipped with fins on the backside.

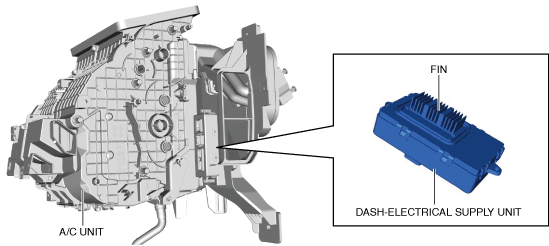

•  The dash-electrical supply unit is located on the A/C unit ventilation passage.
am3zzn00008146

Operation

•  For the dash-electrical supply unit operation, refer to the following systems.
―  Air conditioner system(See MANUAL AIR CONDITIONER SYSTEM [MANUAL AIR CONDITIONER (E)].)
―  Room light control system (See ROOM LIGHT CONTROL SYSTEM.)
―  Heated steering wheel system (See HEATED STEERING WHEEL SYSTEM.)
―  Seat warmer system(See SEAT WARMER SYSTEM [(E)].)
