SET PLATE REMOVAL/INSTALLATION

id091000878900

1.  Remove the rear under cover. (See REAR UNDER COVER REMOVAL/INSTALLATION.)

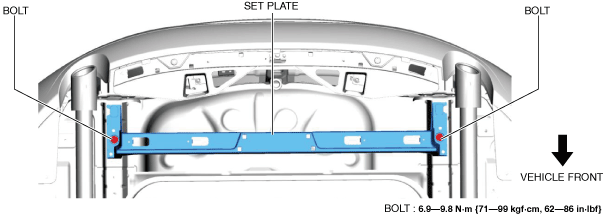

2.  Remove the bolts.

am3zzw00023261

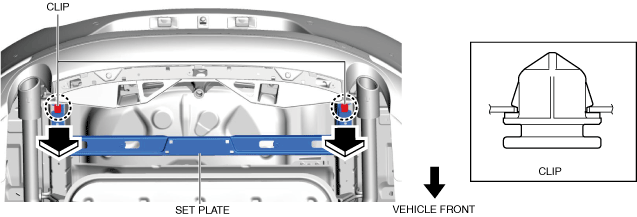

3.  Pull the set plate in the direction of the arrows shown in the figure while detaching the clips.

am3zzw00023262

4.  Install in the reverse order of removal.
