WINDSHIELD WIPER DE-ICER INSPECTION [(E)]

id0912000207x2

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Disconnect the windshield wiper de-icer connector. (See COWL PANEL REMOVAL/INSTALLATION [(E)].)

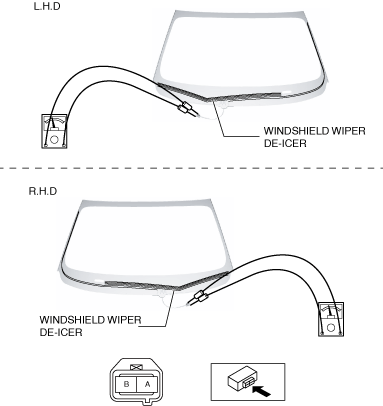

3.  Verify that the resistance and continuity between the windshield wiper de-icer terminals is as indicated in the table.

am3zzw00030144

•  If not as indicated in the table, replace the windshield. (See WINDSHIELD INSTALLATION [(E)].)

ac5uuw00007940
