WINDSHIELD INSTALLATION [(E)]

id0912000007x2

Replacement part

Warning

•  Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

Caution

•  If a door is opened or closed when all the window glass is closed, the resulting change in air pressure could cause the sealant to crack preventing the proper installation of the windshield. Keep the door glass opened until the windshield installation is completed.

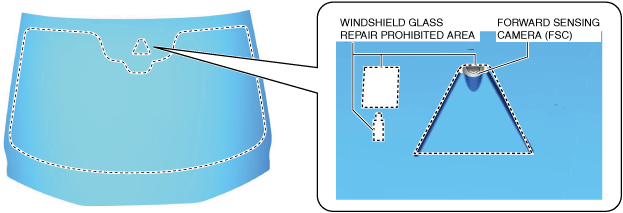

•  If there is damage or cracking in the windshield glass repair prohibited area, replace the windshield. If the damage or cracking in the windshield glass repair prohibited area is repaired, it could affect the recognition of the Forward Sensing Camera (FSC) and the system may not operate normally.

am3zzw00038052

Reusing Windshield

1.  Remove the sealant along the perimeter of the glass using a utility knife.

2.  Clean and degrease an approx. 50 mm {2.0 in} wide strip along the perimeter of the windshield.

3.  Inspect the glass for cracks. If it is cracked, chamfer it using sandpaper.

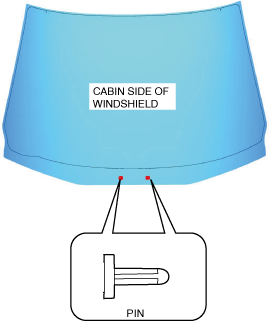

4.  Align the alignment marks made before removal and install the pins to the windshield referring to the figure.

am3zzw00024455

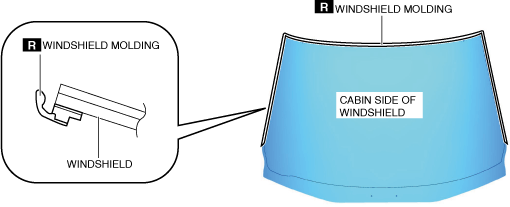

5.  Install the windshield molding.

am3zzw00029544

6.  Apply primer to the area of the glass shown in the figure.

•  Follow the primer product instructions for the drying time.

Caution

•  To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

Note

•  Apply primer to the hollowed marks in the ceramic coating.

Type A

am3zzw00030365

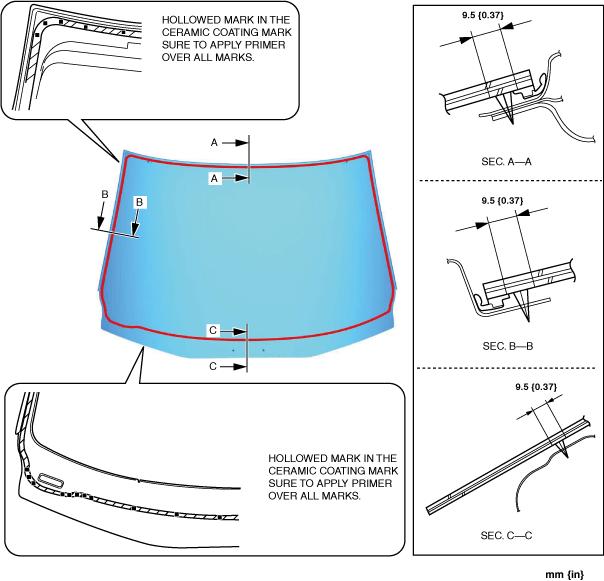

Type B

am3zzw00030375

7.  Cut away the old sealant using a utility knife so that 1—2 mm {0.04—0.07 in} thickness of sealant remains along the perimeter of the frame.

am3zzw00024458

8.  Clean and degrease along the perimeter of the bonding area on the body.

9.  Apply primer to the area of the body shown in the figure.

•  Follow the primer product instructions for the drying time.

Caution

•  To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

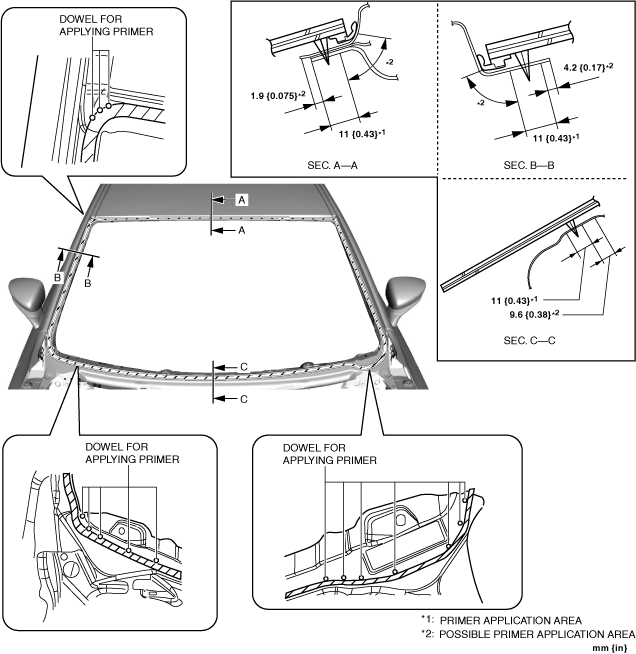

am3zzw00024459

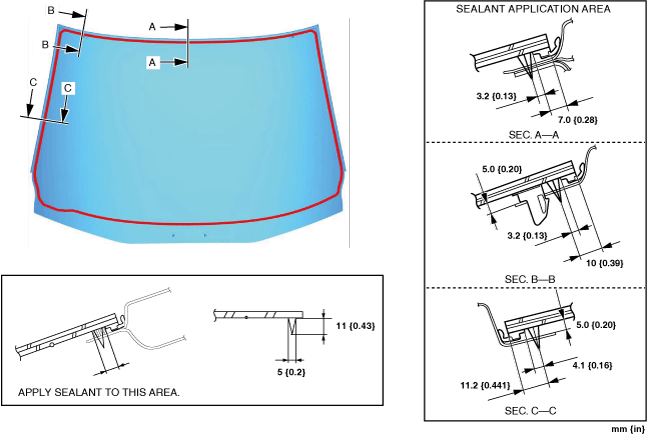

10.  Apply sealant to the area of the glass surface as shown in the figure.

am3zzw00030366

11.  Insert the positioning pins to the body and install the windshield.

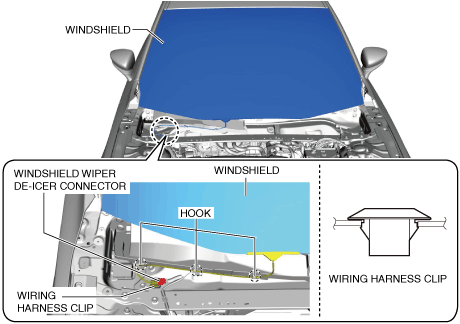

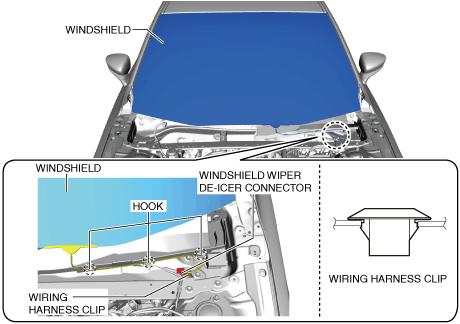

12.  Install the wiring harness clip. (with windshield wiper de-icer)

L.H.D.

am3zzw00034693

R.H.D.

am3zzw00029209

13.  Install the windshield wiper de-icer wiring harness to the hooks. (with windshield wiper de-icer)

14.  Connect the windshield wiper de-icer connector. (with windshield wiper de-icer)

15.  Install the windshield wiper motor. (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

16.  Install the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

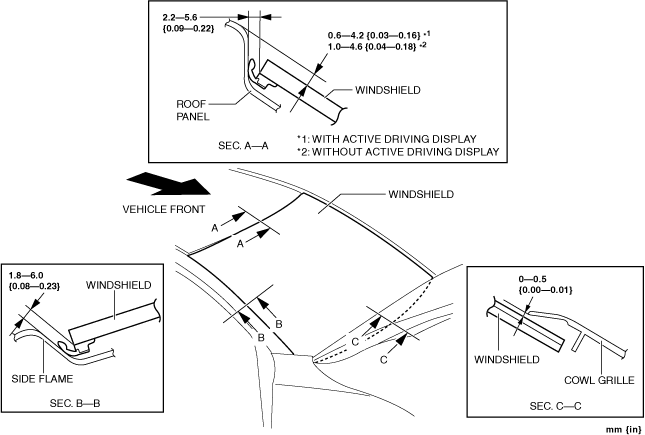

17.  Verify that the gaps and heights between the side frame and windshield, between the roof panel and windshield, and between the cowl grille and windshield are within the ranges shown in the figure, and completely press along the perimeter of the glass.

am3zzw00029545

18.  Connect the auto-dimming rearview mirror connector. (with auto-dimming rearview mirror) (See AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION.)

19.  Connect the forward sensing camera (FSC) connector. (with forward sensing camera (FSC)) (See FORWARD SENSING CAMERA (FSC) AIMING.)

20.  Connect the rain sensor connector. (See RAIN SENSOR REMOVAL/INSTALLATION.)

21.  Install the following parts:

(1)  Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION.)

(2)  Assist handle (front) (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(3)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].)

(4)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(5)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(6)  Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)

(7)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

22.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

23.  Allow the sealant to harden completely.

Note

•  Follow the product instructions for the sealant hardening time.

24.  If the forward sensing camera (FSC) is replaced, perform forward sensing camera (FSC) aiming. (See FORWARD SENSING CAMERA (FSC) AIMING.)

25.  If the rain sensor is replaced, perform the sensitivity setting procedure for the auto lights. (See RAIN SENSOR REMOVAL/INSTALLATION.)

Not Reusing Windshield

1.  Clean and degrease an approx. 50 mm {2.0 in} wide strip along the perimeter of the windshield.

2.  Inspect the glass for cracks. If it is cracked, chamfer it using sandpaper.

3.  Install the windshield molding.

am3zzw00029544

4.  Apply primer to the area of the glass shown in the figure.

•  Follow the primer product instructions for the drying time.

Caution

•  To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

Note

•  Apply primer to the hollowed marks in the ceramic coating.

Type A

am3zzw00030365

Type B

am3zzw00030375

5.  Cut away the old sealant using a utility knife so that 1—2 mm {0.04—0.07 in} thickness of sealant remains along the perimeter of the frame.

am3zzw00024458

6.  Clean and degrease along the perimeter of the bonding area on the body.

7.  Apply primer to the area of the body shown in the figure.

•  Follow the primer product instructions for the drying time.

Caution

•  To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

am3zzw00024459

8.  Apply sealant to the area of the glass surface as shown in the figure.

am3zzw00030366

9.  Insert the positioning pins to the body and install the windshield.

10.  Install the wiring harness clip. (with windshield wiper de-icer)

L.H.D.

am3zzw00034693

R.H.D.

am3zzw00029209

11.  Install the windshield wiper de-icer wiring harness to the hooks. (with windshield wiper de-icer)

12.  Connect the windshield wiper de-icer connector. (with windshield wiper de-icer)

13.  Install the windshield wiper motor. (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

14.  Install the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

15.  Verify that the gaps and heights between the side frame and windshield, between the roof panel and windshield, and between the cowl grille and windshield are within the ranges shown in the figure, and completely press along the perimeter of the glass.

am3zzw00029545

16.  Install the following parts:

(1)  Rearview mirror (without auto-dimming rearview mirror) (See REARVIEW MIRROR REMOVAL/INSTALLATION.)

(2)  Auto-dimming rearview mirror (with auto-dimming rearview mirror) (See AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION.)

(3)  Rain sensor (See RAIN SENSOR REMOVAL/INSTALLATION.)

(4)  Forward sensing camera (FSC) (with forward sensing camera (FSC)) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)

(5)  Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION.)

(6)  Assist handle (front) (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(7)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].)

(8)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(9)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(10)  Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)

(11)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

17.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

18.  Allow the sealant to harden completely.

Note

•  Follow the product instructions for the sealant hardening time.

19.  Adjust the forward sensing camera (FSC) aiming. (See FORWARD SENSING CAMERA (FSC) AIMING.)

20.  If the rain sensor is replaced, perform the sensitivity setting procedure for the auto lights. (See RAIN SENSOR REMOVAL/INSTALLATION.)
