REAR DOOR GLASS RUN-CHANNEL REMOVAL/INSTALLATION [(E)]

id0912009111x2

4SD

Replacement part

Warning

•  Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

1.  Fully lower the rear door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the following parts:

(1)  Power window subswitch (rear) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(2)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(4)  Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

(5)  Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)

(6)  Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)

4.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

5.  Connect the power window subswitch connector.

6.  Perform the rear door glass preparation. (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

7.  Remove the rear door glass. (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

8.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

9.  Disconnect the power window subswitch connector.

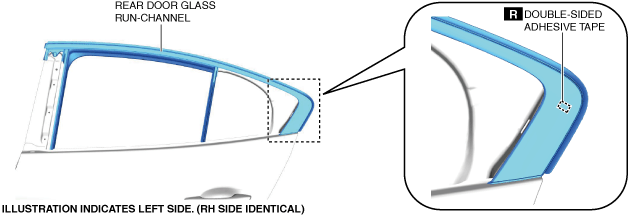

10.  Remove the double-sided adhesive tape in the position shown in the figure using the utility knife.

am3zzw00029550

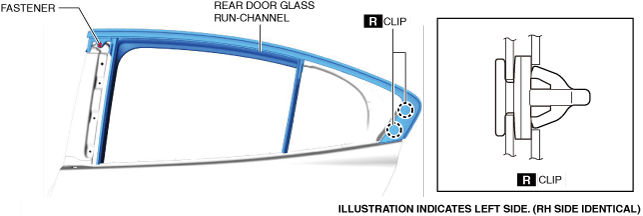

11.  Remove the fastener.

am3zzw00029551

12.  Using a remover tool, detach the clips.

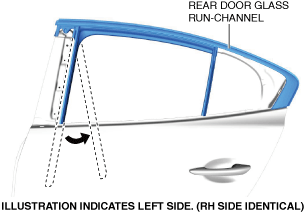

13.  Partially peel back the rear door glass run-channel.

am3zzw00027466

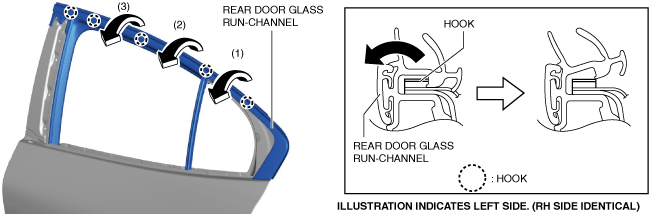

14.  Move the rear door glass run-channel in the order of arrows (1), (2), and (3) shown in the figure and remove it from the rear door hooks.

am3zzw00029552

15.  Remove the rear door glass run-channel.

16.  Install in the reverse order of removal. (See Rear door glass run-channel installation note (4SD).)

Rear door glass run-channel installation note (4SD)

1.  When a rear door glass run-channel is to be reused, perform the following procedure:

1.  Cut double-sided adhesive tape of 1 mm {0.04 in} thickness to the size shown in the figure. (2)

am3zzw00031190

2.  Stick the 2 pieces of double-sided adhesive tape cut in Step 1 together.

am3zzw00031191

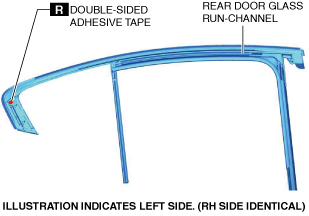

3.  Apply primer to the double-sided adhesive tape application position.

am3zzw00031192

4.  Apply the double-sided adhesive tape cut in Step 2 to the position shown in the figure.

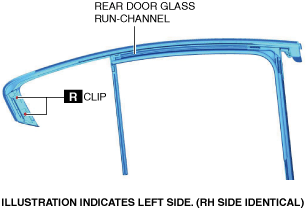

5.  Affix new clips.

am3zzw00029553

5HB

Except VIN: MM8**

1.  Fully lower the rear door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the following parts:

(1)  Power window subswitch (rear) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(2)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(4)  Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

(5)  Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)

(6)  Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)

4.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

5.  Connect the power window sub switch connector.

6.  Perform the rear door glass preparation. (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

7.  Remove the rear door glass. (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

8.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

9.  Disconnect the power window subswitch connector.

10.  Remove the fastener.

am3zzw00024573

11.  Using a remover tool, detach the clip.

12.  Partially peel back the rear door glass run-channel.

am3zzw00029554

13.  Move the rear door glass run-channel in the order of arrows (1), (2), and (3) shown in the figure and remove it from the rear door hooks.

am3zzw00024575

14.  Remove the rear door glass run-channel.

15.  Install in the reverse order of removal.

VIN: MM8**

Replacement part

Warning

•  Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

1.  Fully lower the rear door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the following parts:

(1)  Power window subswitch (rear) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(2)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(4)  Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

(5)  Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)

(6)  Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)

4.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

5.  Connect the power window sub switch connector.

6.  Perform the rear door glass preparation. (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

7.  Remove the rear door glass. (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

8.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

9.  Disconnect the power window subswitch connector.

10.  Remove the fastener.

am3zzw00035840

11.  Using a remover tool, detach the clip.

12.  Remove the double-sided adhesive tape using the utility knife.

am3zzw00035841

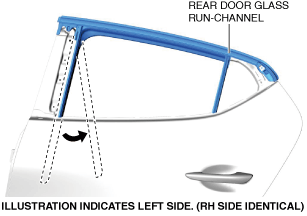

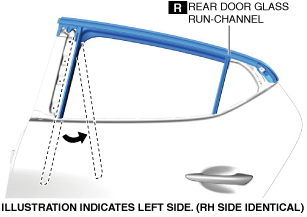

13.  Partially peel back the rear door glass run-channel.

am3zzw00035842

14.  Move the rear door glass run-channel in the order of arrows (1), (2), and (3) shown in the figure and remove it from the rear door hooks.

am3zzw00035843

15.  Remove the rear door glass run-channel.

16.  Install in the reverse order of removal. (See Rear door glass run-channel installation note (5HB) .)

Rear door glass run-channel installation note (5HB)

1.  Remove any grease or dirt from the adhesion surface of the rear door.

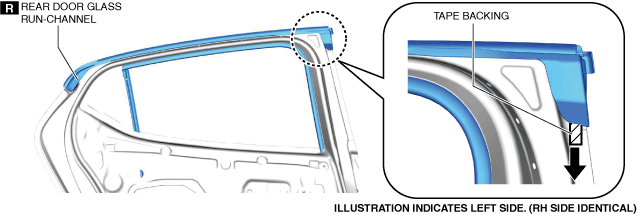

2.  After installing the rear door glass run-channel, peel off the tape backing from the double-sided adhesive tape in the direction of the arrow shown in the figure.

am3zzw00035844

3.  Press the double-sided adhesive tape areas of the rear door glass run-channel.
