SEAT WARMER UNIT INSPECTION [(E)]

id0913008014x2

Note

•  When the seat warmer switch is turned on with the ignition switched ON (engine on), the seat warmer system operates.

Simple Inspection

1.  Place a cooling agent on the seat cushion (thermistor).

ac5ccw00001619

2.  Operate the seat warmer switch to turn on the seat warmer.

3.  Touch the seat cushion and the seat back to verify a temperature increase.

4.  If a temperature increase cannot be verified, go to the resistance inspection. (See Resistance Inspection.)

Resistance Inspection

Driver-side

Front seat cushion

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

3.  Disconnect the ground plate. (For servicing Mazda M Hybrid related parts) (See GROUND PLATE DISCONNECTION/CONNECTION.)

4.  Disconnect the driver-side seat warmer unit connector.

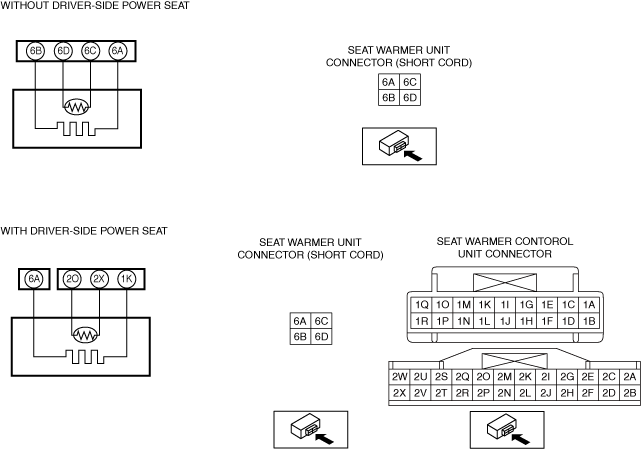

5.  Inspect for continuity between the driver-side seat warmer unit connector terminal 6A—6B(without driver-side power seat) / 6A—1K(with driver-side power seat).

am3zzw00036825

am3zzw00027414

―  If not as indicated in the table, replace the front seat cushion pad. (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION [(E)].)

6.  Measure the resistance between the driver-side seat warmer unit connector terminals 6C and 6D (without driver-side power seat) /2O and 2X (with driver-side power seat), and verify that the condition is as indicated in the table.

am6ccw00000455

•  If not as indicated in the table, replace the front seat cushion pad. (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION [(E)].)

Front seat back

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

3.  Disconnect the ground plate. (For servicing Mazda M Hybrid related parts) (See GROUND PLATE DISCONNECTION/CONNECTION.)

4.  Disconnect the driver-side seat warmer unit connector.

5.  Inspect for continuity between the passenger-side seat warmer unit connector (short cord) terminal A—B.

am3uuw00013118

am3zzw00021115

―  If not as indicated in the table, replace the front seat back pad.(See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION [(E)].)

Passenger-side

Front seat cushion

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

3.  Disconnect the ground plate. (For servicing Mazda M Hybrid related parts) (See GROUND PLATE DISCONNECTION/CONNECTION.)

4.  Disconnect the passenger-side seat warmer unit connector.

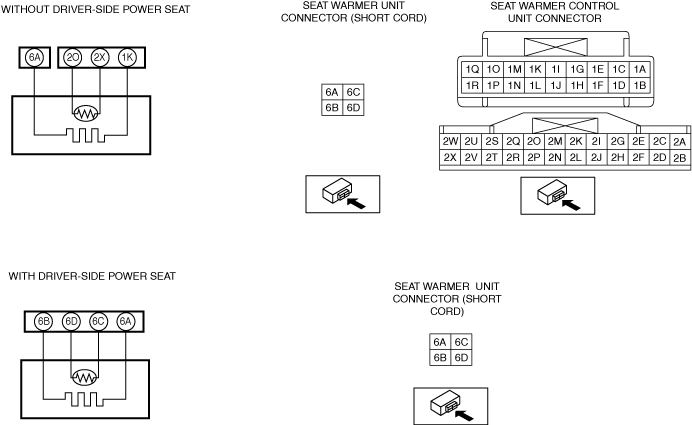

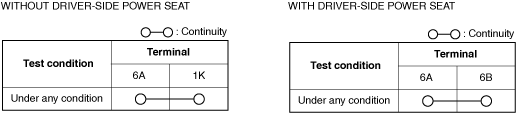

5.  Inspect for continuity between the passenger-side seat warmer unit connector terminal 6A—1K(without driver-side power seat) / 6A—6B(with driver-side power seat).

am3zzw00036826

am3zzw00027416

―  If not as indicated in the table, replace the front seat cushion pad. (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION [(E)].)

6.  Measure the resistance between the passenger-side seat warmer unit connector terminals 2O and 2X (without driver-side power seat) /,6C and 6D (with driver-side power seat), and verify that the condition is as indicated in the table.

am6ccw00000455

•  If the thermistor characteristic is not as shown in the graph, replace the front seat cushion pad. (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION [(E)].)

Front seat back

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

3.  Disconnect the ground plate. (For servicing Mazda M Hybrid related parts) (See GROUND PLATE DISCONNECTION/CONNECTION.)

4.  Disconnect the passenger-side seat warmer unit connector.

5.  Inspect for continuity between the passenger-side seat warmer unit connector (short cord) terminal A—B.

am3zzw00021117

am3uuw00013118

―  If not as indicated in the table, replace the front seat back component.(See FRONT SEAT BACK COMPONENT REMOVAL/INSTALLATION [(E)].)
