FRONT SEAT BACK COMPONENT REMOVAL/INSTALLATION [(E)]

id0913009119x2

Replacement part

Warning

•  Handling a seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling a front seat equipped with a side air bag. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

•  If the sliding mechanisms on both sides are not locked after assembling the front seat, it may move unexpectedly while the vehicle is driven, which could result in serious injury. After assembling the front seat, try moving it back and forth to verify that the sliding mechanism on both sides are locked. (Manual seat)

Caution

•  After the front seat has been removed, if the slider lever is operated and the front seat is reinstalled with the left/right slide positions deviated, the adjuster unit could be damaged. After removing a front seat, do not operate the slider lever. (Manual seat)

am3zzw00036671

•  Verify that there are no malfunctions in the forward/back slide of the seat and in the adjuster unit after installing a front seat.

•  When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.

1.  Remove the front seat belt lower anchor. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

2.  Remove the front seat installation bolts. (See FRONT SEAT REMOVAL/INSTALLATION [(E)].)

3.  Perform the following procedure. (Without Mazda M Hybrid)

(1)  Switch the ignition off.

(2)  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

4.  Perform the following procedure. (With Mazda M Hybrid, without seat warmer system)

(1)  Switch the ignition off.

(2)  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

5.  Perform the following procedure. (With Mazda M Hybrid, with seat warmer system)

(1)  Switch the ignition OFF.

(2)  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

(3)  Verify if the ground plate needs to be disconnected and if it does, disconnect it. (See GROUND PLATE DISCONNECTION/CONNECTION.)

6.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION [(E)].)

7.  Remove the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION [(E)].)

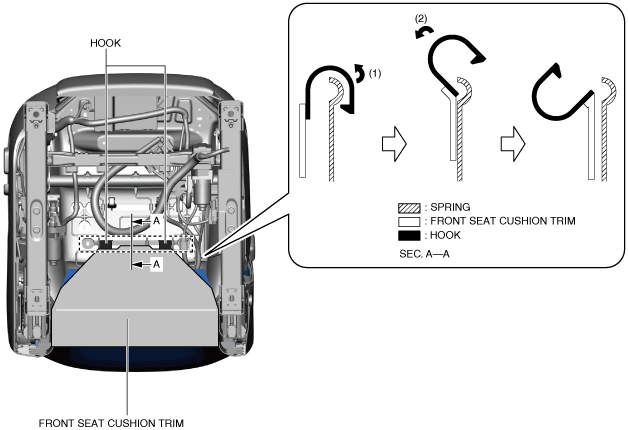

8.  Move the hooks in the order of arrows (1) and (2) shown in the figure to detach the hooks from the springs.

am3zzw00036707

9.  Disconnect the occupancy sensor connector. (Passenger's side)

am3zzw00036708

10.  Disconnect the connectors at the positions shown in the figure.

L.H.D.

am3zzw00036709

R.H.D.

am3zzw00036749

11.  Move the seat warmer connectors in the order of arrows (1) and (2) shown in the figure and remove the connectors.

12.  Remove the wiring harness clips.

13.  Cut the bands.

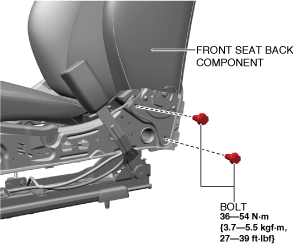

14.  Remove the bolts.

am3zzw00036647

am3zzw00036648

15.  Remove the front seat back component.

16.  Install in the reverse order of removal.
