REAR SEAT CENTER ARMREST TRIM REMOVAL/INSTALLATION

id091300814000

1.  Remove the following parts.

(1)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear center seat belt anchor (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION.)

(3)  Head restraint

(4)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(5)  Rear seat center armrest (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.)

2.  Insert the remover tool into the positions shown in the figure.

3.  While pressing the cup holder tabs in the directions of arrows (1) shown in the figure, move the cup holder in the direction of arrows (2) to detach the cup holder tabs from the rear seat center armrest.

am3zzw00036702

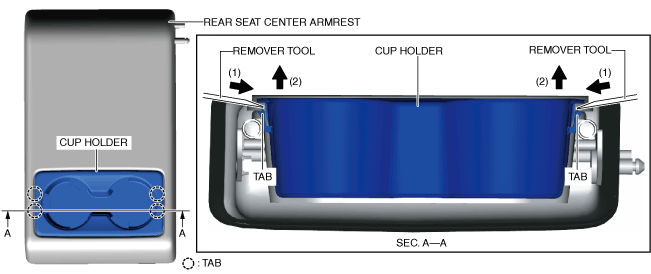

4.  Insert the remover tool into the positions shown in the figure.

5.  While pressing the cup holder tabs in the directions of arrows (1) shown in the figure, move the cup holder in the direction of arrows (2) to detach the cup holder tabs from the rear seat center armrest.

am3zzw00036703

6.  Remove the cup holder.

7.  Move hooks A in the order of arrows (1) and (2) shown in the figure and remove them from hooks B.

am3zzw00036704

8.  Remove the rear seat center armrest trim.

9.  Install in the reverse order of removal.
