REAR SEAT HINGE REMOVAL/INSTALLATION

id091300999100

1.  Remove the following parts:

(1)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

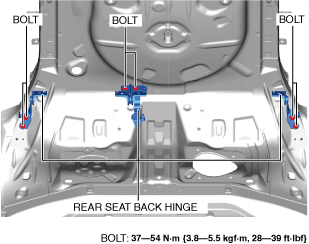

2.  Remove the bolts.

am3zzw00024590

3.  Remove the rear seat hinge.

4.  Install in the reverse order of removal.
