RADIATOR GRILLE DISASSEMBLY/ASSEMBLY [(E)]

id0916004601x2


4SD (Except Chinese specs.)

1.  Remove the front camera. (with 360° view monitor system) (See FRONT CAMERA REMOVAL/INSTALLATION.)

2.  Disassemble in the order indicated in the table.

am3zzw00029922

1
Grille guard (with Mazda rader cruise control (MRCC) system)
2
Front center brand emblem base
3
Front center brand emblem
4
Bracket A
5
Front ultrasonic sensor bracket (with front ultrasonic sensor)
6
Towing hook cover
7
Cap A (with license plate holder type A)
8
License plate holder (with license plate holder)
(See Rivet Removal Note.)
9
Bracket B
10
Cap B (without 360° view monitor system)
11
Grille mesh

3.  Assemble in the reverse order of disassembly.


4SD (Chinese specs.)

1.  Remove the front camera. (with 360° view monitor system) (See FRONT CAMERA REMOVAL/INSTALLATION.)

2.  Disassemble in the order indicated in the table.

am3zzw00034931

1
Front center brand emblem base
2
Front center brand emblem
3
Bracket
4
Front ultrasonic sensor bracket (with front ultrasonic sensor)
5
Towing hook cover
6
License plate holder
(See Rivet Removal Note.)
7
Cap (without 360° view monitor system)
8
Grille mesh

3.  Assemble in the reverse order of disassembly.

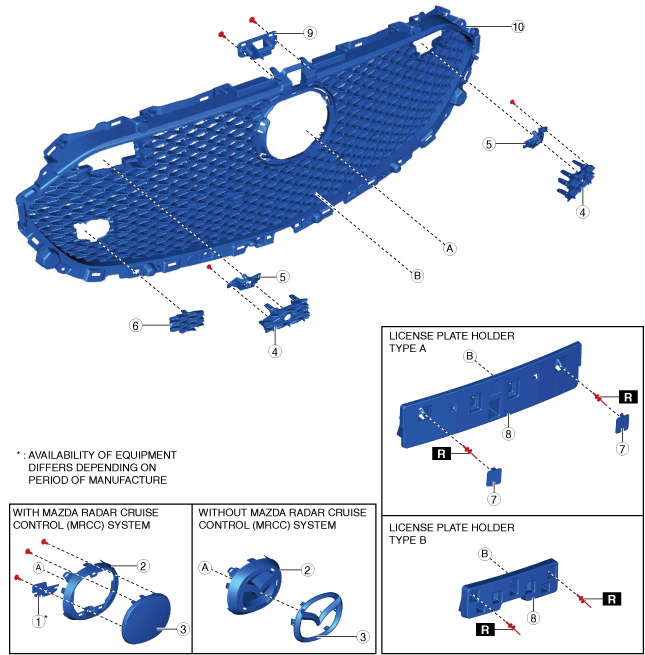

5HB

1.  Remove the front camera. (with 360° view monitor system) (See FRONT CAMERA REMOVAL/INSTALLATION.)

2.  Disassemble in the order indicated in the table.

am3zzw00029923

1
Grille guard (with Mazda rader cruise control (MRCC) system)
2
Front center brand emblem base
3
Front center brand emblem
4
Bracket
5
Front ultrasonic sensor bracket (with front ultrasonic sensor)
6
Towing hook cover
7
Cap A (with license plate holder type A)
8
License plate holder (with license plate holder)
(See Rivet Removal Note.)
9
Cap B (without 360° view monitor system)
10
Grille mesh

3.  Assemble in the reverse order of disassembly.


Rivet Removal Note

Caution
•   If an inappropriate drill diameter is used, the license plate holder and grille mesh may be damaged.

1.  When removing the rivet, perform the following procedure:

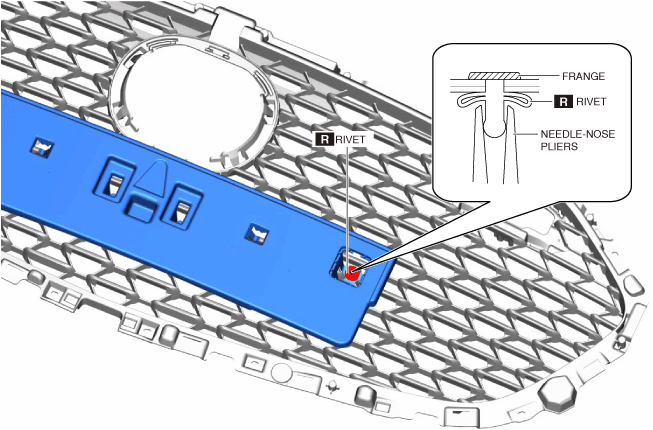

(1)  Secure the rivet pin from the grille mesh side using needle-nose pliers.
am3zzw00029924
(2)  Use the following drill diameter.
Drill diameter:
4.9 mm {0.19 in}
(3)  Remove the rivet flange using a drill and remove the rivet.
am3zzw00029925
(4)  Remove any rivet shavings from the license plate holder and grille mesh.
