FRONT CAMERA REMOVAL/INSTALLATION

id152000009700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the upper face. (See UPPER FACE REMOVAL/INSTALLATION [(E)].)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

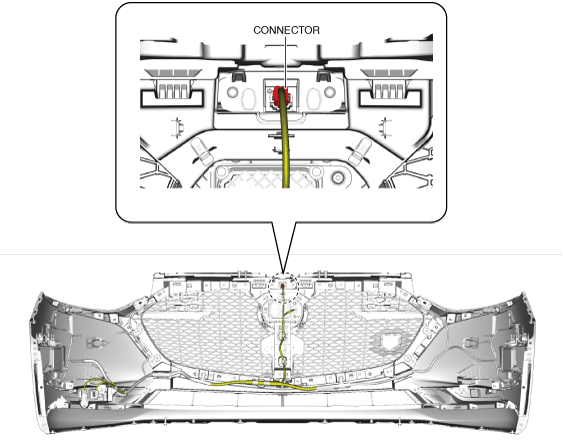

4.  Disconnect the connector.

am3zzw00028796

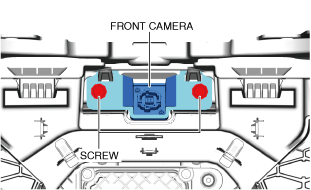

5.  Remove the screws.

am3zzw00028797

6.  Remove the front camera.

7.  Install in the reverse order of removal.

8.  Perform the front camera aiming. (See 360°VIEW MONITOR SYSTEM AIMING.)

9.  Perform the front side radar sensor aiming. (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING.)

10.  Perform the front radar sensor aiming. (See FRONT RADAR SENSOR AIMING.)
