SIDE STEP MOLDING INSTALLATION

id091600804300

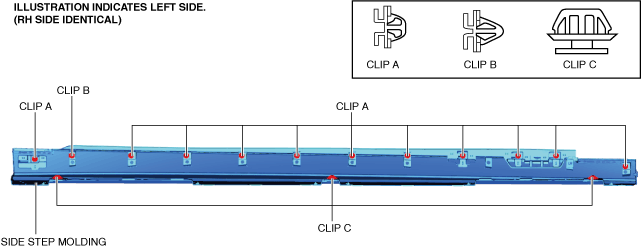

1.  Install clips A, B and C to the side step molding.

am3zzw00028822

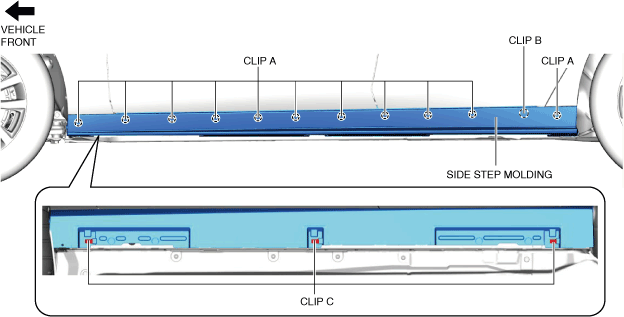

2.  Press the side step molding and install clip B to the body.

am3zzw00026341

3.  Press the side step molding starting from the rear of the vehicle and install the clips A.

4.  Press the side step molding and install clips C to the body.

5.  Install the fastener.

am3zzw00026343

6.  Install the rear deflector. (See DEFLECTOR REMOVAL/INSTALLATION.)
