SIDE STEP MOLDING REMOVAL


id091600804400

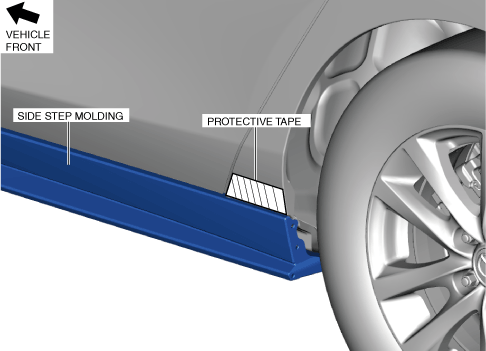

1.  Affix protective tape to the position shown in the figure.

am3zzw00029716

2.  Remove the rear deflector. (See DEFLECTOR REMOVAL/INSTALLATION.)

3.  Remove the fastener.

am3zzw00026345

4.  Insert a remover tool and fastener remover shown in the figure, and detach the clip from the body.

am3zzw00029717

5.  Remove the side step molding in the direction of arrow (2) shown in the figure while pulling it in the direction of arrow (1).

am3zzw00026347

6.  After removing the side step molding, remove the clips from the body using a fastener remover.

am3zzw00026348
