TRUNK END TRIM REMOVAL/INSTALLATION


id091700803400


4SD

1.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

2.  Partially peel back the weatherstrip.

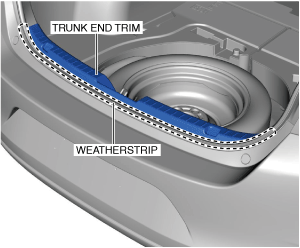

am3zzw00021870

3.  Remove the fasteners.

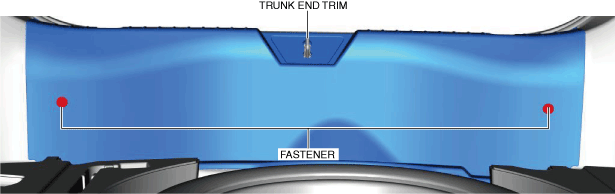

am3zzw00021871

4.  Pull the trunk end trim in the direction of the arrow in the order of (1), (2) shown in the figure while detaching the clips, pins, and guides.

am3zzw00029157

5.  Install in the reverse order of removal.


5HB

1.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

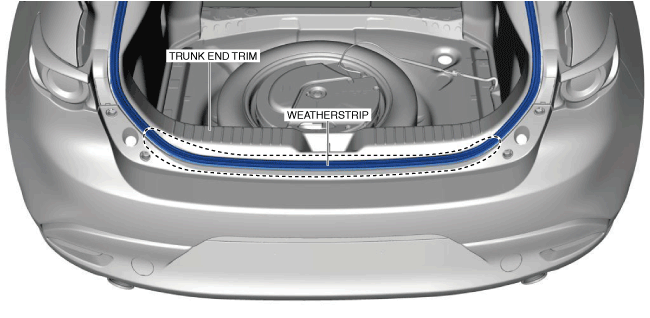

2.  Partially peel back the weatherstrip.

am3zzw00021873

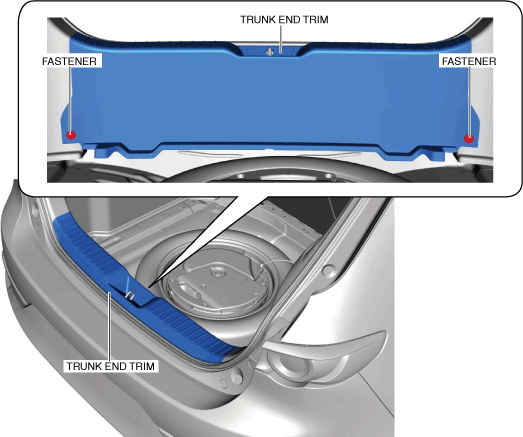

3.  Remove the fasteners.

am3zzw00021874

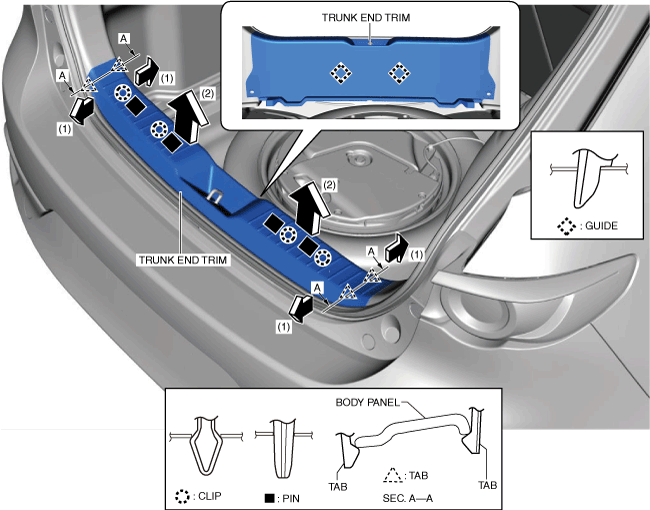

4.  Pull the trunk end trim in the direction of the arrow in the order of (1), (2) shown in the figure while detaching tabs, clips, pins and guides.

am3zzw00021875

5.  Install in the reverse order of removal.
