LIGHT SWITCH REMOVAL/INSTALLATION [(E)]

id0918008028x2

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts.

(1)  Driver's air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(2)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(E)].)

(3)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(4)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(5)  Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)].)

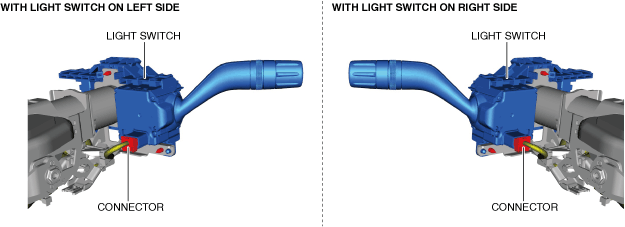

3.  Disconnect the connectors.

am3zzw00030985

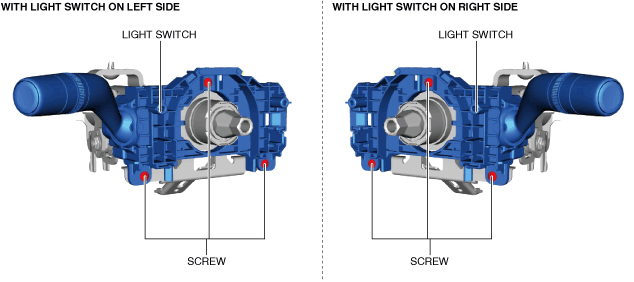

4.  Remove the screws.

am3zzw00030986

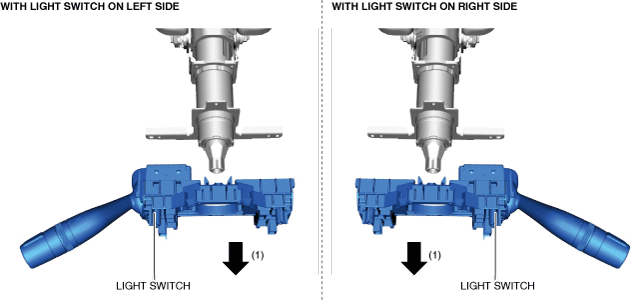

5.  While pull out the combination light in the direction of arrow (1) shown in the figure.

am3zzw00030987

6.  Remove the light switch.

7.  Install in the reverse order of removal.
