COLUMN COVER REMOVAL/INSTALLATION

id091700800800

Upper Column Cover

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [F66M-R].)

(2)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(3)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(5)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(6)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(7)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

(8)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(9)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(10)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(11)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(12)  Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION [(E)].)

(13)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(14)  Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(15)  Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

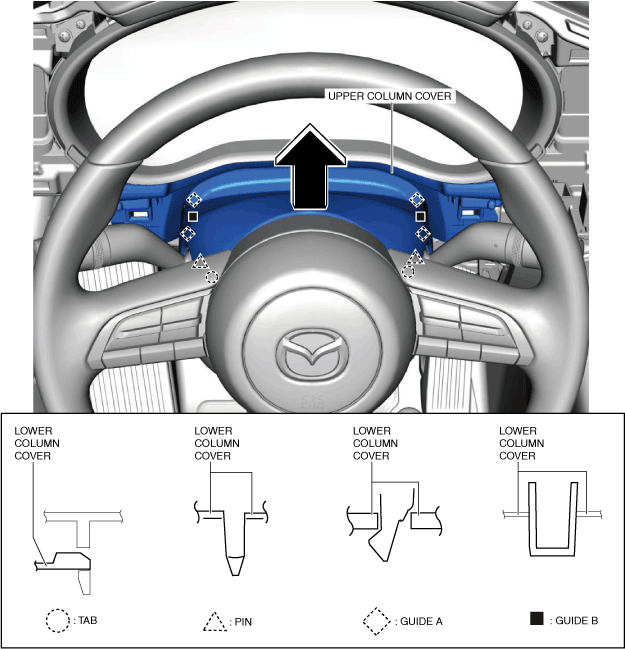

3.  Move the upper column cover in the direction of the arrow, and detach the pins, tabs, guides A and B from the lower column cover.

am3zzw00024062

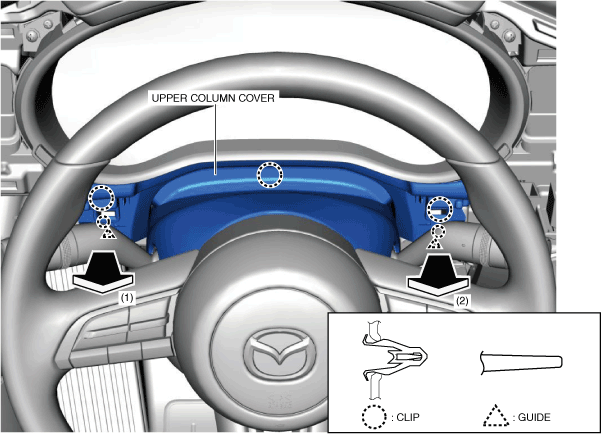

4.  Move the upper column cover in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the clips and guides.

am3zzw00021793

5.  Install in the reverse order of removal.

Lower Column Cover

Note

•  When removing the lower column cover, it is necessary to rotate the steering wheel.

•  If any door is opened/closed with the ignition switched OFF, the steering wheel will lock. Perform the procedure from Steps 1-3 so that the steering wheel will not be locked.

1.  Switch the ignition ON (engine off or on).

2.  Open the front driver-side door.

3.  Switch the ignition off.

4.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

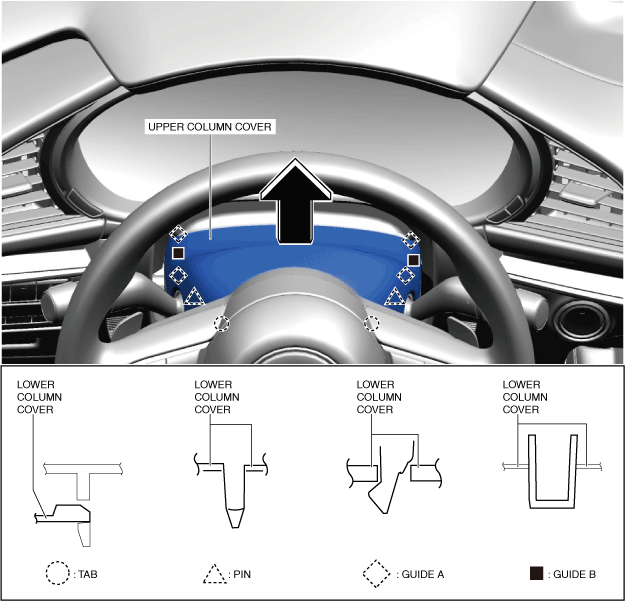

5.  Move the upper column cover in the direction of the arrow, and detach the pins, tabs, guides A and B from the lower column cover.

am3zzw00038277

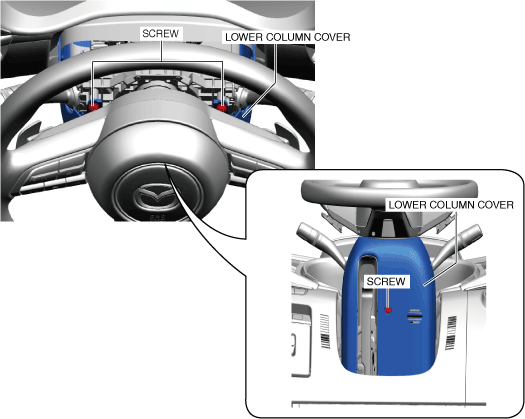

6.  Remove the screws.

am3zzw00038278

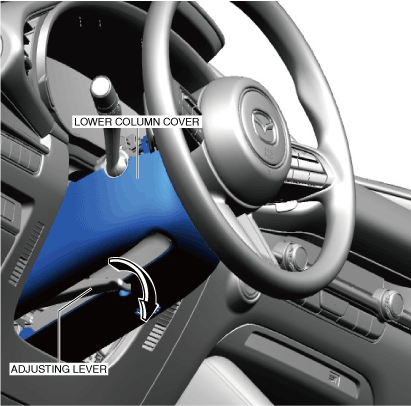

7.  Lower the adjusting lever to the bottommost position.

am3zzw00038279

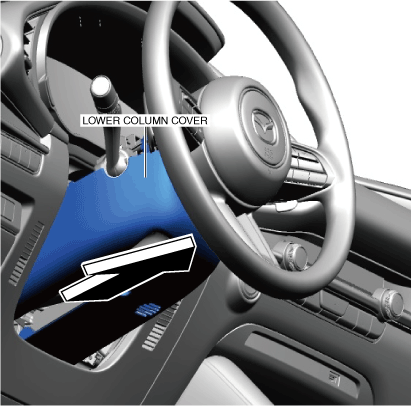

8.  Remove the lower column cover in the direction of the arrow shown in the figure.

am3zzw00038280

9.  Disconnect the notification and warning speaker connector. (with notification and warning speaker)

10.  Install in the reverse order of removal.

Note

•  When replacing the lower column cover, remove the notification and warning speaker (front). (with notification and warning speaker) (See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION.)
