PARKING LIGHT BULB REMOVAL/INSTALLATION

id091800804200

Bulb Type

1.  Switch the ignition ON (engine off or on).

2.  Fully turn the steering wheel in the opposite direction of the side the parking light bulb is being removed.

3.  Switch the ignition off.

4.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

5.  Partially peel back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

6.  Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the figure.

am3zzw00027103

Caution

•  If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5%).

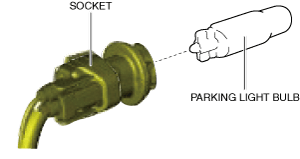

7.  Remove the parking light bulb.

am3zzw00027104

8.  Install in the reverse order of removal.

LED Type

Note

•  The parking light (LED type) is integrated with the front combination light.

•  When replacing the parking light (LED type), replace it together with the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
