WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION [(E)]

id0919008021x2

Windshield Washer Hose A

2. Remove the front mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION.)

3. Remove the front fender insulator No.1. (See FRONT FENDER INSULATOR No.1 REMOVAL/INSTALLATION.)

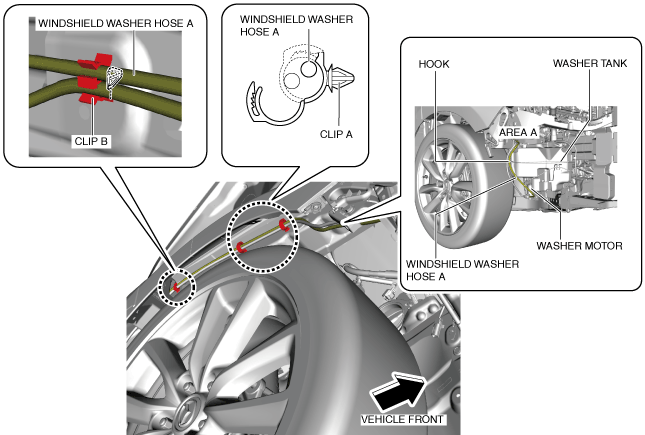

4. Disconnect the windshield washer hose A from the washer motor.

am3zzw00032121

5. Remove the windshield washer hose A from the washer tank hook. (See Windshield washer hose A installation note.)

6. Pull out the windshield washer hose A from area A of the washer tank.

7. Remove the windshield washer hose A from the clips A and B.

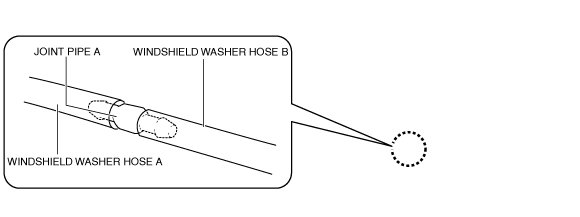

8. Disconnect the windshield washer hose A from the joint pipe A.

am3zzw00027050

9. Remove the windshield washer hose A.

10. Install in the reverse order of removal.

Windshield washer hose A installation note

• When installing windshield washer hose A to the washer tank hook, align the hook with the upper part of the gray mark and install.

am3zzw00027132

Windshield Washer Hose B (L.H.D.)

1. Disconnect the windshield washer hose B from the joint pipe A.

am3zzw00027050

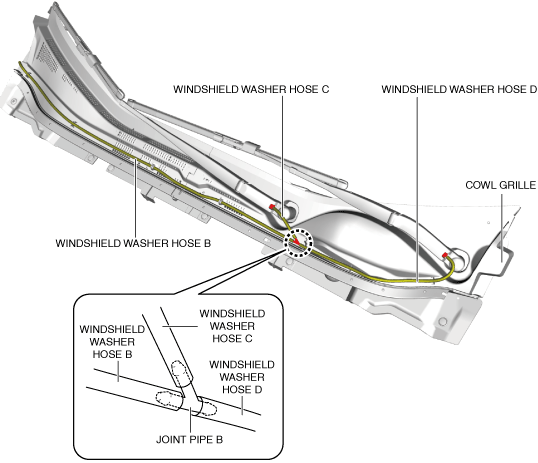

2. Disconnect the windshield washer hose B from the joint pipe B.

am3zzw00032122

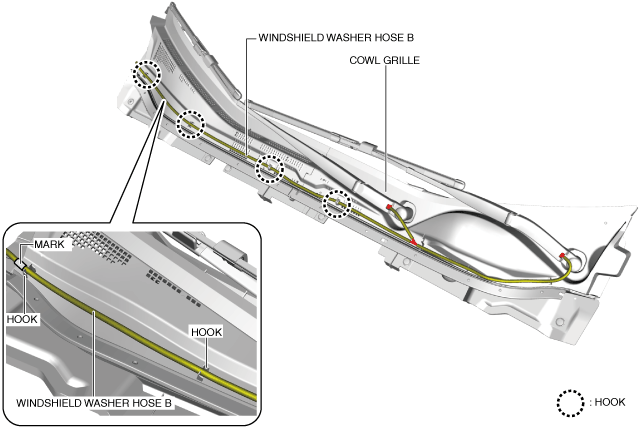

3. Remove the windshield washer hose B from the hooks.

am3zzw00035106

4. Install in the reverse order of removal.

Windshield Washer Hose C and D

L.H.D.

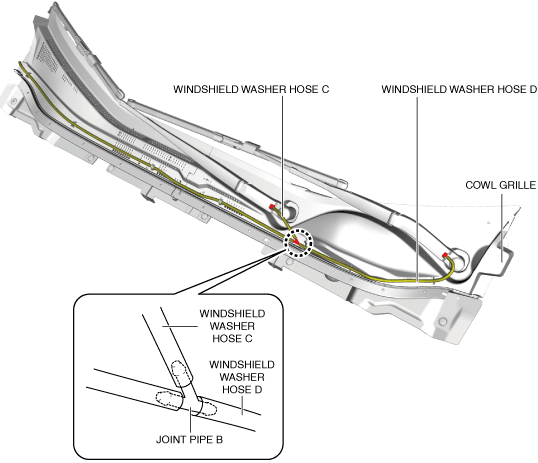

1. Disconnect the windshield washer hose C and D from the joint pipe B.

am3zzw00032123

2. Disconnect the windshield washer hose C and D from the joint pipe C and D.

am3zzw00032124

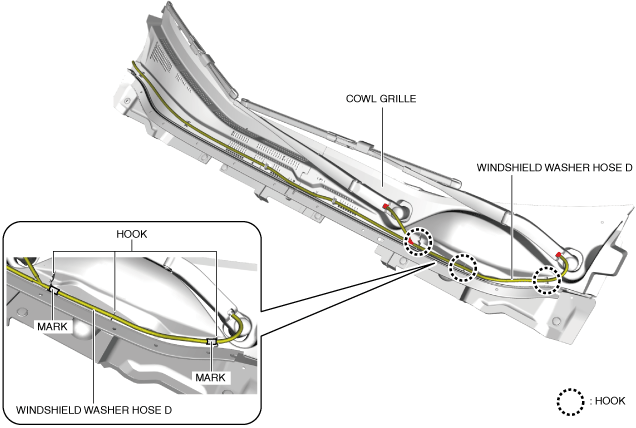

3. Remove the windshield washer hose D from the hooks.

am3zzw00035107

4. Install in the reverse order of removal.

R.H.D.

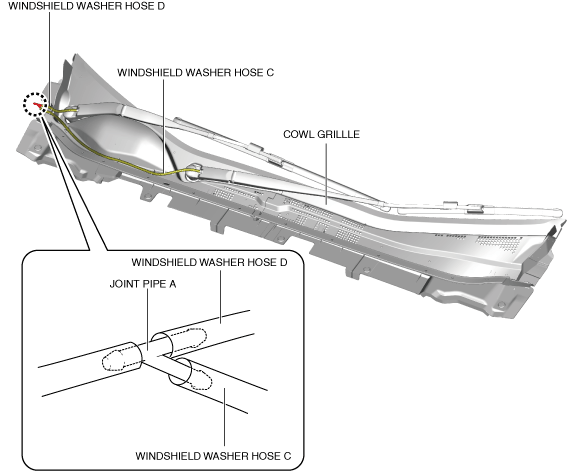

1. Disconnect the windshield washer hose C and D from the joint pipe A.

am3zzw00035085

2. Disconnect the windshield washer hose C and D from the joint pipe C and D.

am3zzw00035086

3. Remove the windshield washer hose C and D from the hooks.

am3zzw00035111

4. Install in the reverse order of removal.
