CENTER DISPLAY REMOVAL/INSTALLATION

id092000031300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

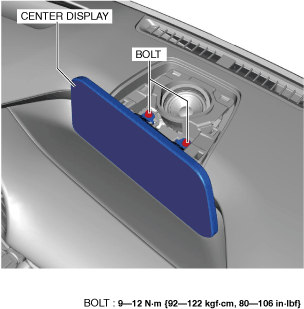

3.  Remove the bolts.

am3zzw00024049

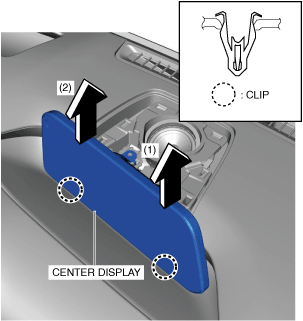

4.  Pull the center display in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the clips.

am3zzw00024050

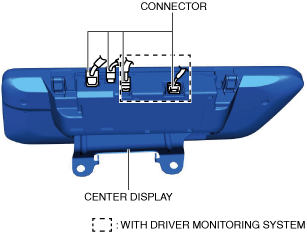

5.  Disconnect the connectors.

am3zzw00029352

6.  Install in the reverse order of removal.
