SPEAKER GRILLE REMOVAL/INSTALLATION

id091700960700

Center Speaker Grille

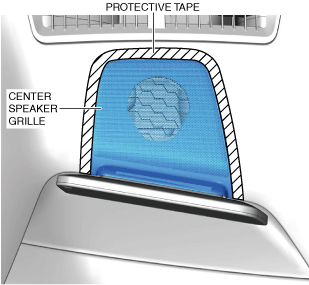

1. To prevent scratches or damage, affix protective tape to the position shown in the figure of the dashboard.

Caution

• If work using protective tape is performed in an area where the temperature can increase drastically or the protective tape is left adhered for a long period of time, tape adhesive could remain area where the protective tape was applied when the it is peeled off. When applying protective tape, avoid areas where the temperature of the tape can increase drastically and peel off the protective tape soon after the work is completed.

am3zzw00021978

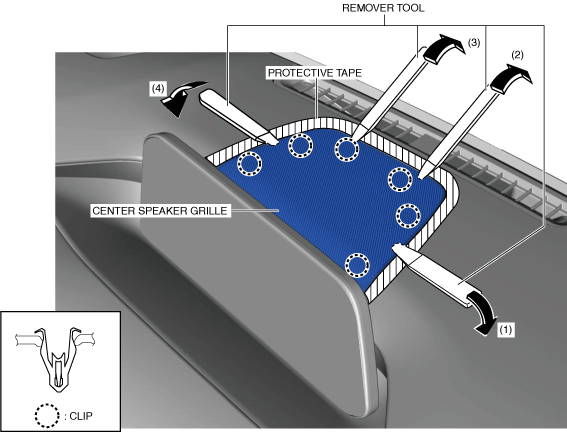

2. Insert the remover tool into the positions shown in the figure, move it in the order of arrows (1), (2), (3), and (4) and detach the clips.

am3zzw00021979

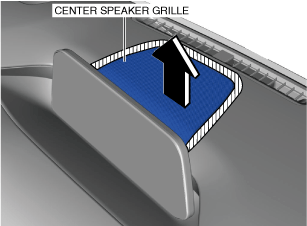

3. Remove the center speaker grille in the direction of the arrow shown in the figure.

am3zzw00021980

4. Install in the reverse order of removal.

Front Door Speaker Grille

1. To prevent scratches or damage, affix protective tape to the position shown in the figure of the dashboard.

Caution

am3zzw00036896

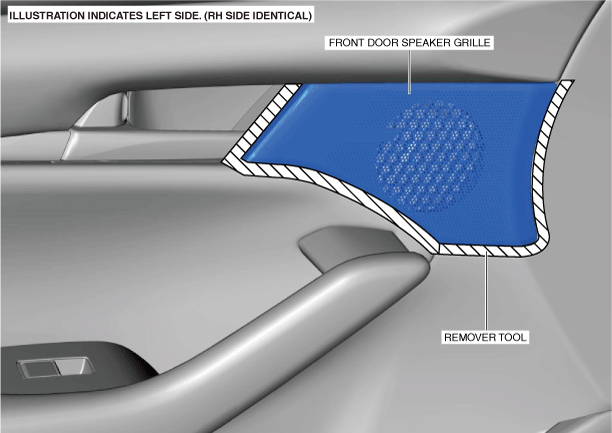

2. Insert the remover tool into the position shown in the figure, move it in the direction of the arrow, and then detach the hooks in the order shown in the figure.

am3zzw00036897

3. Install in the reverse order of removal.

Rear Side Speaker Grille

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Remove the following parts:

(1) Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(3) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(4) Rear side speaker (See REAR SPEAKER REMOVAL/INSTALLATION.)

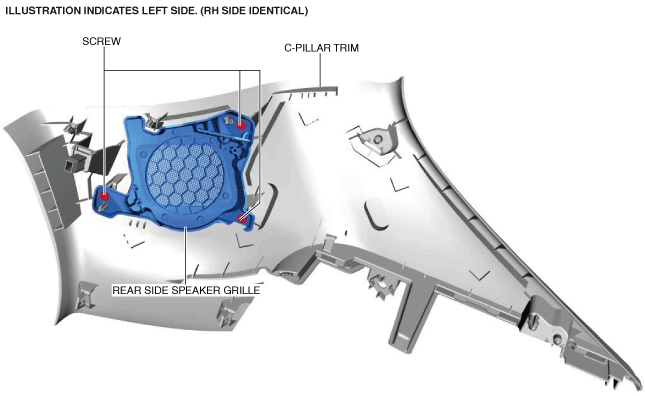

3. Remove the screws.

am3zzw00021981

4. Remove the rear side speaker grille.

5. Install in the reverse order of removal.
