USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION

id092000469000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the console-up. (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

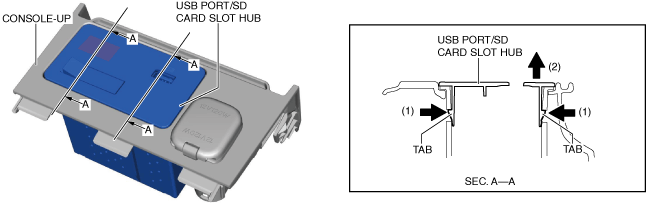

3.  While pressing the tabs of the USB port/SD card slot hub in the direction of arrows (1) shown in the figure, move the USB port/SD card slot hub in the direction of arrow (2) and detach the tabs of the USB port/SD card slot hub from the console-up.

am3zzw00024053

4.  Remove the USB port/SD card slot hub.

5.  Install in the reverse order of removal.
