BASS-BOX REMOVAL/INSTALLATION [(E)]

id0920008152x2

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

3.  Remove the bolt.

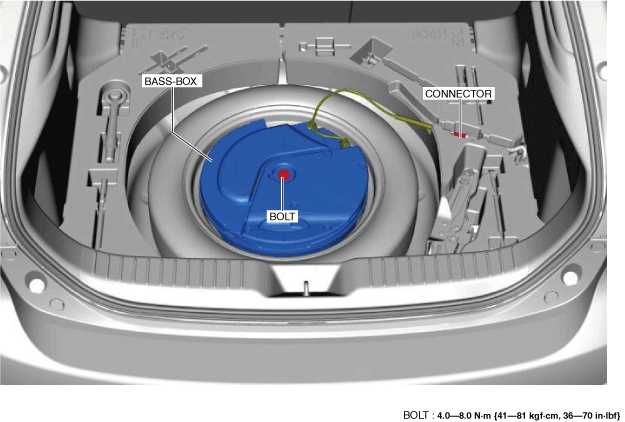

With temporary spare tire

am3zzw00024104

Without temporary spare tire

am3zzw00028552

4.  Disconnect the connector.

5.  Remove the bass-box and short cord as a single unit.

6.  Remove the wiring harness clip.

am3zzw00024105

7.  Remove the short-cord from the bass-box.

8.  Install in the reverse order of removal.
