FRONT CENTER SPEAKER REMOVAL/INSTALLATION

id092000866600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

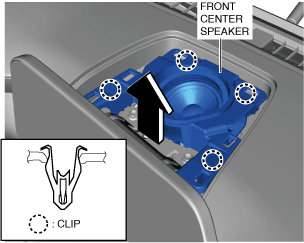

3.  Move the front center speaker in the direction of the arrow shown in the figure while detaching the clips.

am3zzw00024110

4.  Disconnect the connector.

am3zzw00024111

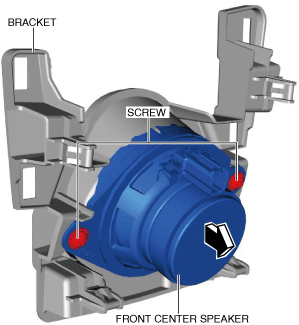

5.  Remove the screws.

am3zzw00024112

6.  Remove the front center speaker in the direction of the arrow shown in the figure.

7.  Install in the reverse order of removal.
