FUEL GAUGE SENDER UNIT INSPECTION [(E)]

id0922000121x2

Fuel gauge sender unit connector 6-pin type

SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5, SKYACTIV-D 1.8, SKYACTIV-X 2.0

1.  Perform the "Fuel Line Safety Procedure" referring to the "BEFORE SERVICE PRECAUTION".

(See BEFORE SERVICE PRECAUTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))])

2.  If the fuel gauge level indicates 8/16 or more, refer to the "FUEL DRAINING PROCEDURE" and drain the fuel.

(See FUEL DRAINING PROCEDURE [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))])

3.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

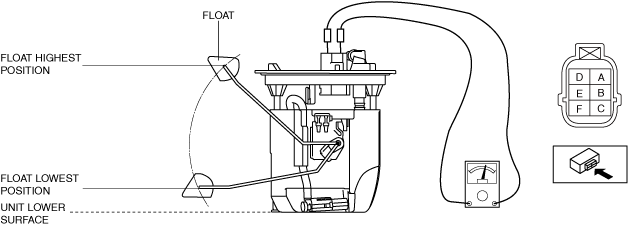

4.  Verify that the resistance at fuel gauge sender unit terminals F and C is as follows according to the height of the float.

am3zzw00030141

•  If the resistance is not within the specification, replace the fuel gauge sender unit.(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [(E)])

Fuel gauge sender unit connector 5-pin type

1.  Perform the "Fuel Line Safety Procedure" referring to the "BEFORE SERVICE PRECAUTION".

(See BEFORE SERVICE PRECAUTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))])

2.  If the fuel gauge level indicates 8/16 or more, refer to the "FUEL DRAINING PROCEDURE" and drain the fuel.

(See FUEL DRAINING PROCEDURE [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))])

3.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

4.  Apply 5 V to fuel gauge sender unit terminals A.

5.  Verify the voltage of fuel gauge sender unit terminal E.

Voltage when float is in the highest position

•  4.4—4.6 V

Voltage when float is in the lowest position

•  0.4—0.6 V

am3zzw00020163

•  If the voltage is not within the specification, replace the fuel gauge sender unit.(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [(E)])
