EMERGENCY CALL UNIT BATTERY REMOVAL/INSTALLATION

id092200670000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(5)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(7)  Emergency call unit (See EMERGENCY CALL UNIT REMOVAL/INSTALLATION.)

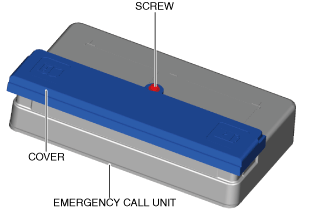

3.  Remove the screw.

am3zzw00030881

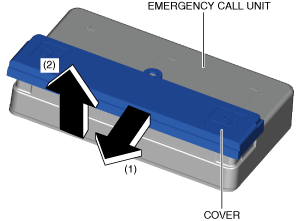

4.  Move the cover in the direction of the arrows in the order of (1) and (2) and remove it from the emergency call unit.

am3zzw00030882

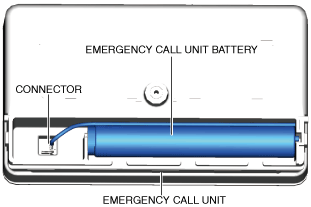

5.  Disconnect the connector.

am3zzw00030883

6.  Remove the emergency call unit battery.

7.  Install in the reverse order of removal.
