HIGH BEAM CONTROL SWITCH INSPECTION [(E)]

id1520000150x2

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

2.  Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION [(E)].)

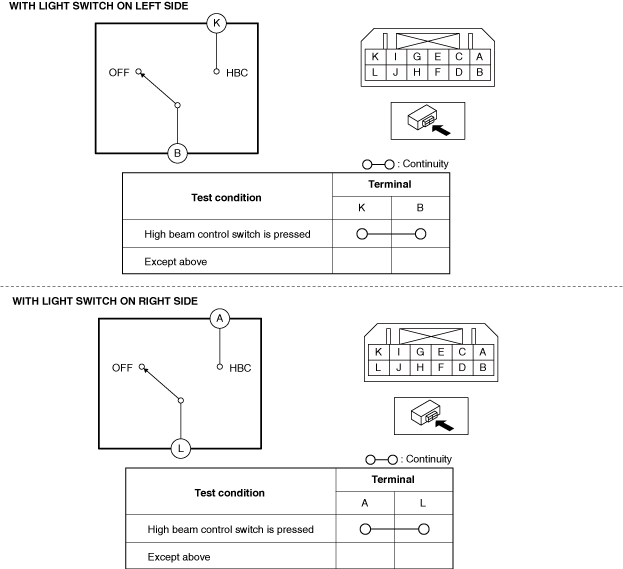

3.  Verify that the continuity between the high beam control switch terminals is as indicated in the table.

am3zzw00030168
•  If not as indicated in the table, replace the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION [(E)].)
