DTC P2123:00 [LF, L5]
id0102c8708400
DTC P2123:00 |
APP sensor No.1 circuit high input |
---|---|
DETECTION CONDITION
|
• The PCM monitors the input voltage from APP sensor No.1 when the engine is running. If the input voltage is above 4.8 V, the PCM determines that the APP sensor No.1 circuit input voltage is high.
Diagnostic support note
• This is a continuous monitor (CCM).
• The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
• FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
• The DTC is stored in the PCM memory.
|

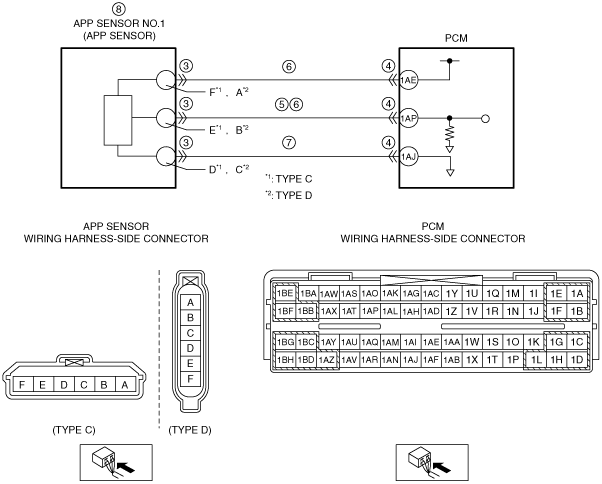

POSSIBLE CAUSE
|
ACCELERATOR PEDAL POSITION SENSOR CONNECTOR C TYPE
• APP sensor connector or terminals malfunction
• PCM connector or terminals malfunction
• Short to power supply in wiring harness between APP sensor terminal E and PCM terminal 1AP
• APP sensor power supply circuit and signal circuit are shorted to each other
• Open circuit in wiring harness between APP sensor terminal D and PCM terminal 1AJ
• APP sensor No.1 malfunction
• PCM malfunction
ACCELERATOR PEDAL POSITION SENSOR CONNECTOR D TYPE
• APP sensor connector or terminals malfunction
• PCM connector or terminals malfunction
• Short to power supply in wiring harness between APP sensor terminal B and PCM terminal 1AP
• APP sensor power supply circuit and signal circuit are shorted to each other
• Open circuit in wiring harness between APP sensor terminal C and PCM terminal 1AJ
• APP sensor No.1 malfunction
• PCM malfunction
|
![]() |
Diagnostic procedure
STEP |
INSPECTION |
ACTION |
|
---|---|---|---|
1
|
VERIFY FREEZE FRAME DATA (MODE 2)/SNAPSHOT DATA HAS BEEN RECORDED
• Has the FREEZE FRAME DATA (Mode 2)/snapshot data been recorded?
|
Yes
|
Go to the next step.
|
No
|
Record the FREEZE FRAME DATA (Mode 2)/snapshot data on repair order, then go to the next step.
|
||
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
No
|
Go to the next step.
|
||
3
|
INSPECT APP SENSOR CONNECTOR CONDITION
• Switch the ignition to off.
• Disconnect the APP sensor connector.
• Inspect for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal and/or connector, then go to Step 9.
|
No
|
Go to the next step.
|
||
4
|
INSPECT PCM CONNECTOR CONDITION
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal and/or connector, then go to Step 9.
|
No
|
Go to the next step.
|
||
5
|
INSPECT APP SENSOR NO.1 SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
ACCELERATOR PEDAL POSITION SENSOR CONNECTOR C TYPE
• APP sensor and PCM connectors are disconnected.
• Switch the ignition to ON (engine off).
• Measure the voltage between APP sensor terminal E (wiring harness-side) and body ground.
• Is there any voltage?
ACCELERATOR PEDAL POSITION SENSOR CONNECTOR D TYPE
• APP sensor and PCM connectors are disconnected.
• Switch the ignition to ON (engine off).
• Measure the voltage between APP sensor terminal B (wiring harness-side) and body ground.
• Is there any voltage?
|
Yes
|
Repair or replace the wiring harness for a possible short to power supply, then go to Step 9.
|
No
|
Go to the next step.
|
||
6
|
INSPECT APP SENSOR NO.1 POWER SUPPLY CIRCUIT AND SIGNAL CIRCUIT FOR SHORT TO EACH OTHER
ACCELERATOR PEDAL POSITION SENSOR CONNECTOR C TYPE
• APP sensor and PCM connectors are disconnected.
• Switch the ignition to off.
• Inspect for continuity between APP sensor terminals F and E (wiring harness-side).
• Is there continuity?
ACCELERATOR PEDAL POSITION SENSOR CONNECTOR D TYPE
• APP sensor and PCM connectors are disconnected.
• Switch the ignition to off.
• Inspect for continuity between APP sensor terminals A and B (wiring harness-side).
• Is there continuity?
|
Yes
|
Repair or replace the malfunctioning wiring harness, then go to Step 9.
|
No
|
Go to the next step.
|
||
7
|
INSPECT APP SENSOR NO.1 GROUND CIRCUIT FOR OPEN CIRCUIT
ACCELERATOR PEDAL POSITION SENSOR CONNECTOR C TYPE
• APP sensor and PCM connectors are disconnected.
• Inspect for continuity between APP sensor terminal D (wiring harness-side) and PCM terminal 1AJ (wiring harness-side).
• Is there continuity?
ACCELERATOR PEDAL POSITION SENSOR CONNECTOR D TYPE
• APP sensor and PCM connectors are disconnected.
• Inspect for continuity between APP sensor terminal C (wiring harness-side) and PCM terminal 1AJ (wiring harness-side).
• Is there continuity?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to Step 9.
|
||
8
|
INSPECT APP SENSOR NO.1
• Reconnect the APP sensor and PCM connectors.
• Inspect the APP sensor No.1.
• Is there any malfunction?
|
Yes
|
Replace the accelerator pedal, then go to the next step.
|
No
|
Go to the next step.
|
||
9
|
VERIFY DTC TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the M-MDS.
• Perform the KOEO/KOER self test.
(See KOEO/KOER SELF TEST [LF, L5].)
• Is the same DTC present?
|
Yes
|
Replace the PCM, then go to the next step.
|
No
|
Go to the next step.
|
||
10
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the “AFTER REPAIR PROCEDURE”.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC TABLE [LF, L5].)
|
No
|
DTC troubleshooting completed.
|
