DRIVE BELT INSPECTION [MZ-CD 1.6 (Y6) (EURO4 emission level)]


id0110e4801500

Note
•  Drive belt deflection/tension inspection is not necessary because of the use of the drive belt auto tensioner.

1.  Remove the engine cover.

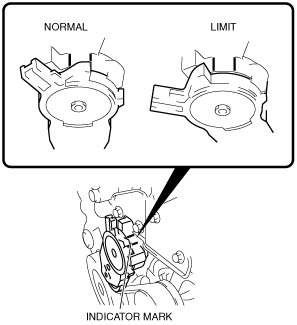

2.  Verify that the drive belt auto tensioner indicator mark does not exceed the limit.

am3zzw00007452

•  If it exceeds the limit, replace the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].)

3.  Install the engine cover.
