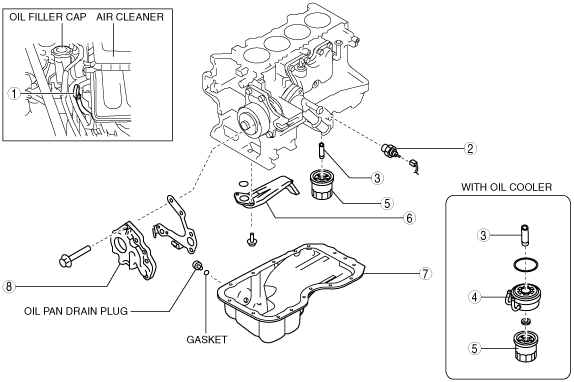

LUBRICATION SYSTEM LOCATION INDEX [ZY, Z6]

id0111a0800100

am3zzw00007870

1	Dipstick (See ENGINE OIL LEVEL INSPECTION [ZY, Z6].) (See ENGINE OIL REPLACEMENT [ZY, Z6].)
2	Oil pressure switch (See OIL PRESSURE INSPECTION [ZY, Z6].)
3	Oil filter joint (See OIL FILTER JOINT REMOVAL/INSTALLATION [ZY, Z6].)
4	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [ZY, Z6].)
5	Oil filter (See OIL FILTER REPLACEMENT [ZY, Z6].)
6	Oil strainer (See OIL PAN REMOVAL/INSTALLATION [ZY, Z6].)
7	Oil pan (See OIL PAN REMOVAL/INSTALLATION [ZY, Z6].)
8	Oil pump (See OIL PUMP REMOVAL/INSTALLATION [ZY, Z6].) (See OIL PUMP DISASSEMBLY/ASSEMBLY [ZY, Z6].) (See OIL PUMP INSPECTION [ZY, Z6].)
