COOLING SYSTEM LOCATION INDEX [LF, L5]

id0112g3800100

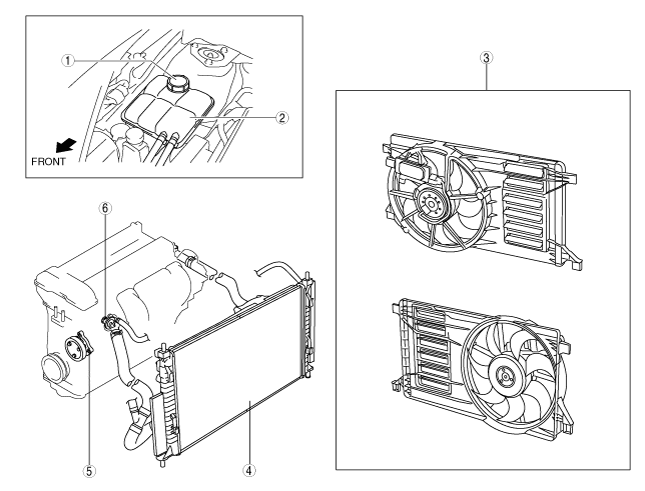

am3zzw00008773

1	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [LF, L5].)
2	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [LF, L5].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [LF, L5].)
3	Cooling fan component (See COOLING FAN COMPONENT REMOVAL/INSTALLATION [LF, L5].) (See COOLING FAN COMPONENT INSPECTION [LF, L5].)
4	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [LF, L5].) (See ENGINE COOLANT REPLACEMENT [LF, L5].) (See ENGINE COOLANT LEAKAGE INSPECTION [LF, L5].) (See RADIATOR REMOVAL/INSTALLATION [LF, L5].) (See RADIATOR DRAIN PLUG REPLACEMENT [LF, L5].)
5	Water pump (See WATER PUMP REMOVAL/INSTALLATION [LF, L5].)
6	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION [LF, L5].) (See THERMOSTAT INSPECTION [LF, L5].)
