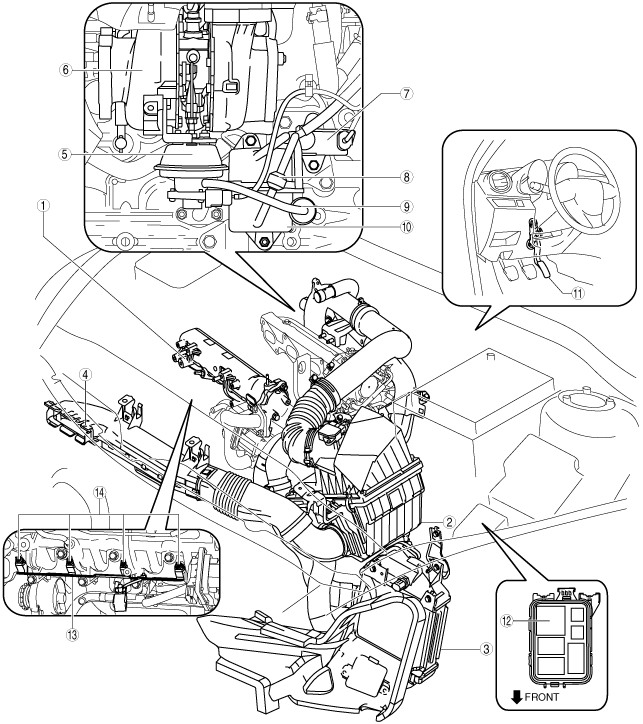

INTAKE-AIR SYSTEM LOCATION INDEX [MZR-CD 2.2]

id0113f3801700

am3zzw00005538

1	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD 2.2])
2	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD 2.2]) (See AIR CLEANER ELEMENT INSPECTION [MZR-CD 2.2])
3	Charge air cooler (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD 2.2])
4	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD 2.2])
5	Guide blade actuator (See GUIDE BLADE ACTUATOR INSPECTION [MZR-CD 2.2])
6	Turbocharger (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR-CD 2.2].) (See TURBOCHARGER INSPECTION [MZR-CD 2.2])
7	VBC solenoid valve (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD 2.2].) (See VARIABLE BOOST CONTROL (VBC) SOLENOID VALVE INSPECTION [MZR-CD 2.2].)
8	VBC check valve (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD 2.2].) (See VARIABLE BOOST CONTROL (VBC) CHECK VALVE INSPECTION [MZR-CD 2.2].)
9	Vacuum damper (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD 2.2])
10	Vacuum chamber (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD 2.2])
11	Accelerator pedal component (See ACCELERATOR PEDAL COMPONENT REMOVAL/INSTALLATION [MZR-CD 2.2])
12	Glow plug relay (See RELAY INSPECTION.)
13	Glow plug cord (See GLOW PLUG REMOVAL/INSTALLATION [MZR-CD 2.2]) (See GLOW PLUG CORD INSPECTION [MZR-CD 2.2])
14	Glow plug (See GLOW PLUG REMOVAL/INSTALLATION [MZR-CD 2.2]) (See GLOW PLUG INSPECTION [MZR-CD 2.2])
