FUEL SYSTEM LOCATION INDEX [L3 Turbo]

id0114b4800100

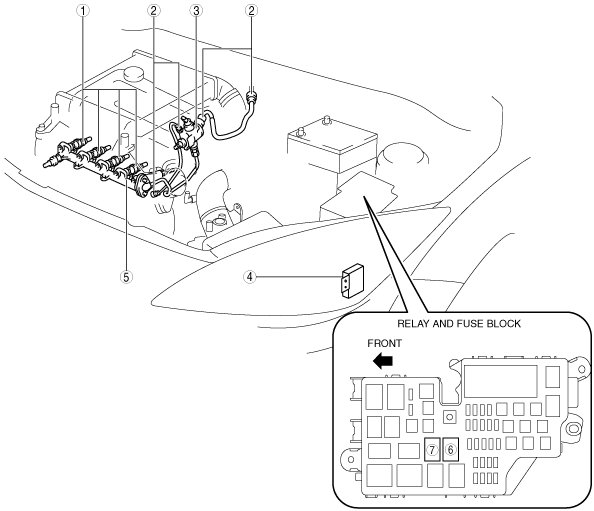

Engine Room Side

am3uuw00005774

1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [L3 Turbo].) (See FUEL INJECTOR INSPECTION [L3 Turbo].)
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [L3 Turbo].)
3	High pressure fuel pump (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [L3 Turbo].) (See HIGH PRESSURE FUEL PUMP INSPECTION [L3 Turbo].)
4	Fuel pump resistor (See FUEL PUMP RESISTOR REMOVAL/INSTALLATION [L3 Turbo].) (See FUEL PUMP RESISTOR INSPECTION [L3 Turbo].)
5	Fuel delivery pipe (See FUEL INJECTOR REMOVAL/INSTALLATION [L3 Turbo].)
6	Fuel pump speed control relay (See RELAY INSPECTION.)
7	Fuel pump relay (See RELAY INSPECTION.)

Fuel Tank Side

am3zzw00008315

1	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [L3 Turbo].)
2	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [L3 Turbo].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [L3 Turbo].) (See FUEL PUMP UNIT INSPECTION [L3 Turbo].)
3	Nonreturn valve (See FUEL TANK REMOVAL/INSTALLATION [L3 Turbo].) (See NONRETURN VALVE INSPECTION [L3 Turbo].)
4	Breather hose (See FUEL TANK REMOVAL/INSTALLATION [L3 Turbo].)
5	Fuel-filler pipe (See FUEL TANK REMOVAL/INSTALLATION [L3 Turbo].)
6	joint hose (See FUEL TANK REMOVAL/INSTALLATION [L3 Turbo].)
7	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [L3 Turbo].) (See FUEL TANK INSPECTION [L3 Turbo].)
