FUEL FILTER COMPONENT DISASSEMBLY/ASSEMBLY [MZR-CD 2.2]
id0114f2777900
1. Remove the fuel filter. (See FUEL FILTER COMPONENT REMOVAL/INSTALLATION [MZR-CD 2.2].)
2. Disassemble in the order indicated in the table.

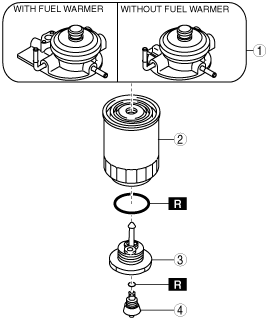

L.H.D.
am3zzw00005138
|
|
1
|
Fuel filter body
|
|
2
|
Fuel filter
|
|
3
|
Sedimentor switch
|
|
4
|
Drain plug
|
R.H.D.
am3zzw00005139
|
|
1
|
Fuel filter body
|
|
2
|
Fuel filter
|
|
3
|
Sedimentor switch
|
|
4
|
Drain plug
|
3. Assemble in the reverse order of removal.
Fuel Filter Installation Note
1. Apply a small amount of fuel to the fuel filter O-ring.
2. Tighten the fuel filter approx. 3/4 by hand after the O-ring contacts the priming pump.
