EMISSION SYSTEM LOCATION INDEX [MZR 2.0 DISI i-stop]

id0116a9803700

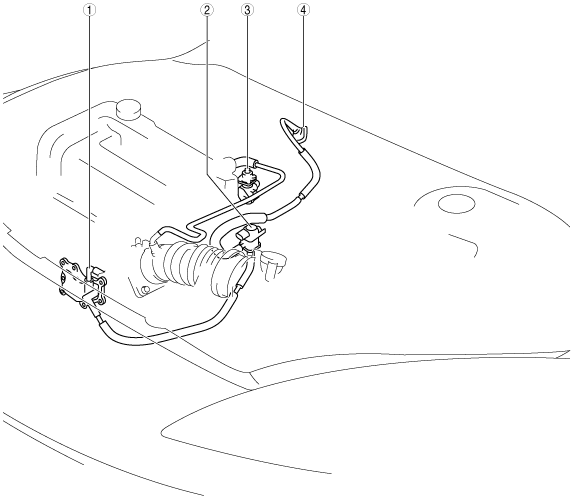

Engine Compartment Side

am3zzw00008544

1	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [MZR 2.0 DISI i-stop].)
2	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See PURGE SOLENOID VALVE INSPECTION [MZR 2.0 DISI i-stop].)
3	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See EGR VALVE INSPECTION [MZR 2.0 DISI i-stop].)
4	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)

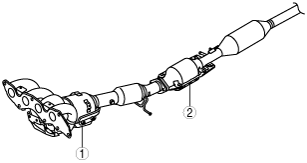

Exhaust System Side

am3uuw00002499

1	WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
2	TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)

Fuel Tank Side

am3zzw00011134

1	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
2	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See ROLLOVER VALVE INSPECTION [MZR 2.0 DISI i-stop].) (See CHECK VALVE (TWO-WAY) REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See CHECK VALVE (TWO-WAY) INSPECTION [MZR 2.0 DISI i-stop].)
3	Fuel-filler cap
4	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See CHARCOAL CANISTER INSPECTION [MZR 2.0 DISI i-stop].)
5	Evaporative hose (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
6	Check valve (See CHECK VALVE (TWO-WAY) REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See CHECK VALVE (TWO-WAY) INSPECTION [MZR 2.0 DISI i-stop].)
