PURGE SOLENOID VALVE REMOVAL/INSTALLATION [L3 Turbo]

id0116b4804300

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3 Turbo].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L3 Turbo].)

3.  Remove in the order indicated in the table.

am3uuw00005813

1	Purge solenoid valve connector
2	Evaporative hose (See Evaporative Hose Installation Note.)
3	Purge solenoid valve

4.  Install in the reverse order of removal.

Evaporative Hose Installation Note

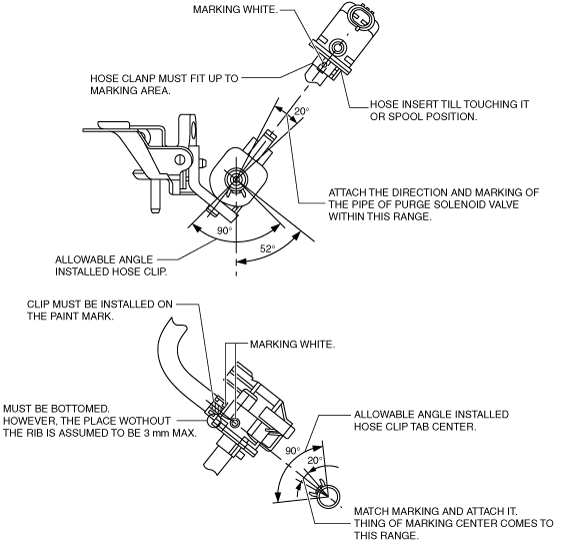

1.  Install the evaporative hose and clip as shown in the figure.

am3zzw00008553
