PCM INSPECTION [ZY, Z6]

id0140a0802500


Without Using the M-MDS

Caution
•  The PCM terminal voltages vary with change in measuring conditions and vehicle conditions. Always carry out a total inspection of the input systems, output systems, and PCM to determine the cause of trouble. Otherwise, a wrong diagnosis will be made.

1.  Measure the voltage at each terminal.

•  If any incorrect voltage is detected, inspect the related system(s), wiring harnesses and connector(s) referring to the Action column in the terminal voltage table.


PCM terminal voltage table (Reference)

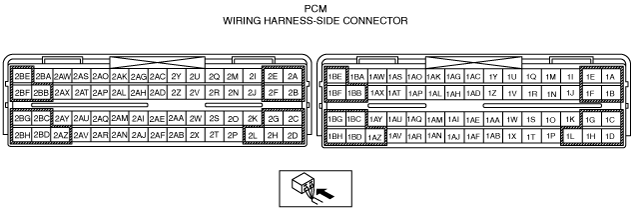

am3zzw00013239

Terminal

Signal name

Connected to

Test condition

Voltage (V)

Inspection item
1A*7
Internal ground
Input/turbine speed sensor shield wire
Under any condition
1.0 or less
•  Related wiring harness
1B
—
—
—
—
—
1C
Sensor GND
APP sensor No.1
Under any condition
Below 1.0
•  Related wiring harness
1D*7
Shift solenoid A
(See PCM INSPECTION [FN4A-EL].)
1E
Constant voltage (Vref)
APP sensor No.1
Under any condition
Approx. 5.0
•  Related wiring harness
1F
—
—
—
—
—
1G
Brake switch (No.1 signal)
Brake switch No.1
Brake pedal depressed
B+
•  Brake switch (No.1 signal)
•  Related wiring harness
Brake pedal released
Below 1.0
1H*7
Shift solenoid B
(See PCM INSPECTION [FN4A-EL].)
1I
—
—
—
—
—
1J
Neutral switch*6
Neutral switch
Switch the ignition to ON.
Neutral
Below 1.0
•  Neutral switch
•  Related wiring harness
Except above
B+
Manual down*7
(See PCM INSPECTION [FN4A-EL].)
1K*7
Shift solenoid D
(See PCM INSPECTION [FN4A-EL].)
1L*7
Shift solenoid C
(See PCM INSPECTION [FN4A-EL].)
1M
CPP switch*6
CPP switch
Switch the ignition to ON.
Clutch pedal is depressed
Below 1.0
•  CPP switch
•  Related wiring harness
Clutch pedal is released
B+
Manual up*7
(See PCM INSPECTION [FN4A-EL].)
1N*7
M range switch
(See PCM INSPECTION [FN4A-EL].)
1O*7
Shift solenoid E
(See PCM INSPECTION [FN4A-EL].)
1P*7
Pressure control solenoid (+)
(See PCM INSPECTION [FN4A-EL].)
1Q
APP sensor No.2
APP sensor No.2
(See Inspection Using An Oscilloscope (Reference).)
•  APP sensor No.2
•  Related wiring harness
1R*7
Input/turbine speed sensor (+)
(See PCM INSPECTION [FN4A-EL].)
1S
—
—
—
—
—
1T*7
Pressure control solenoid (–)
(See PCM INSPECTION [FN4A-EL].)
1U
—
—
—
—
—
1V*7
Input/turbine speed sensor (–)
(See PCM INSPECTION [FN4A-EL].)
1W
—
—
—
—
—
1X
Starter relay
Starter relay
Cranking
Below 1.0
•  Starter relay
•  Related wiring harness
1Y
Refrigerant pressure (high, low)
Refrigerant pressure switch (high, low)
Refrigerant pressure is more than the specification or less than the specification. (Refrigerant pressure switch (high, low) is off.)
Approx. 5.0
•  Refrigerant pressure switch (high, low)
•  Related wiring harness
Except above
Below 2.0*1
Approx. 3.0*2
1Z
—
—
—
—
—
1AA
—
—
—
—
—
1AB
—
—
—
—
—
1AC
Refrigerant pressure switch (middle)
Refrigerant pressure switch (middle)
Refrigerant pressure is more than the specification. (Refrigerant pressure switch (middle) is on.)
Below 1.0
•  Refrigerant pressure switch (middle)
•  Related wiring harness
Refrigerant pressure is less than the specification. (Refrigerant pressure switch (middle) is off.)
Approx. 5.0
1AD
APP sensor No.1
APP sensor No.1
Switch the ignition to ON.
Accelerator pedal depressed
Approx. 3.4
•  APP sensor No.1
•  Related wiring harness
Accelerator pedal released
Approx. 0.4
1AE
CAN_H
CAN system related module, DLC-2
Because this terminal is for CAN, no valid determination of terminal voltage is possible.
•  Related wiring harness
1AF*3
Cruise control switch
Cruise control switch
Under any condition
Below 1.0
•  Related wiring harness
1AG
Sensor ground*7
(See PCM INSPECTION [FN4A-EL].)
Sensor ground*8
Current sensor
Under any condition
Below 1.0
•  Related wiring harness
1AH*7
ATF temperature
(See PCM INSPECTION [FN4A-EL].)
1AI
CAN_L
CAN system related module, DLC-2
Because this terminal is for CAN, no valid determination of terminal voltage is possible.
•  Related wiring harness
1AJ
Main relay
Main relay
Switch the ignition to off
B+
•  Main relay
•  Related wiring harness
Switch the ignition to ON.
Below 1.0
1AK*8
Constant voltage (Vref)
Current sensor
Under any condition
Approx. 5.0
•  Related wiring harness
1AL*8
Current sensor
Current sensor
Idle
0.5—4.5
•  Current sensor
•  Related wiring harness
1AM
—
—
—
—
—
1AN
A/C cut-off control
A/C relay
Idle, A/C operating
Below 1.0
•  A/C relay
•  Related wiring harness
Idle, A/C not operating
B+
1AO
—
—
—
—
—
1AP
—
—
—
—
—
1AQ*9
Fuel pump control
Fuel pump relay
Switch the ignition to ON and a certain period has elapsed.
B+
•  Fuel pump relay
•  Related wiring harness
Cranking
Below 1.0
Idle
1AR*10
Fuel pump control
Fuel pump relay
Switch the ignition to ON and a certain period has elapsed.
B+
•  Fuel pump relay
•  Related wiring harness
Cranking
Below 1.0
Idle
1AS*7
Selector lever position
(See PCM INSPECTION [FN4A-EL].)
1AT
—
—
—
—
—
1AU*3
Cruise control switch
Cruise control switch
Switch the ignition to ON
OFF switch pressed in
Approx. 0
•  Cruise control switch
•  Related wiring harnesses
CANCEL switch pressed in
Approx. 1.4
SET (-) switch pressed in
Approx. 2.4
SET (+) switch pressed in
Approx. 3.2
RESUME switch pressed in
Approx. 3.9
ON switch pressed in
Approx. 4.3
Except above
Approx. 4.6
1AV
Cooling fan control
Cooling fan relay No.1
Cooling fan not operating
B+
•  Cooling fan relay No.1
•  Related wiring harness
Cooling fan operating
Below 1.0
1AW
—
—
—
—
—
1AX*7
Vehicle speed
(See PCM INSPECTION [FN4A-EL].)
1AY
—
—
—
—
—
1AZ
Cooling fan control
Cooling fan relay No.2, No.3
Cooling fan not operating
B+
•  Cooling fan relay No.2, No.3
•  Related wiring harness
Cooling fan operating
Below 1.0
1BA
—
—
—
—
—
1BB
B+
Main relay
Ignition switch off.
Below 1.0
•  Main relay
•  Related wiring harness
Switch the ignition to ON.
B+
1BC
Back-up power supply
Battery
Under any condition
B+
•  Battery
•  Related wiring harness
1BD
—
—
—
—
—
1BE
Drive-by-wire control
Main relay
Switch the ignition to ON.
Drive-by-wire system is malfunction
Below 1.0
•  Main relay
•  Related wiring harness
Drive-by-wire system is normal
B+
1BF
B+
Main relay
Ignition switch off.
Below 1.0
•  Main relay
•  Related wiring harness
Switch the ignition to ON.
B+
1BG*2
B+
Main relay
Ignition switch off.
Below 1.0
•  Main relay
•  Related wiring harness
Switch the ignition to ON.
B+
1BH
Ignition switch (IG1)
Ignition switch*4, Ignition relay No.1*5
Switch the ignition to off
Below 1.0
•  Ignition switch*4, Ignition relay No.1*5
•  Related wiring harness
Switch the ignition to ON
B+
2A
Fuel injection control
Fuel injector No.1
(See Inspection Using An Oscilloscope (Reference).)
•  Fuel injector No.1
•  Related wiring harness
2B
Fuel injection control
Fuel injector No.2
(See Inspection Using An Oscilloscope (Reference).)
•  Fuel injector No.2
•  Related wiring harness
2C
Fuel injection control
Fuel injector No.3
(See Inspection Using An Oscilloscope (Reference).)
•  Fuel injector No.3
•  Related wiring harness
2D
Ignition coil power supply
Ignition coil
Switch the ignition to ON.
B+
•  Ignition coil
•  Related wiring harness
2E
Fuel injector No.1 power supply
Fuel injector No.1
Switch the ignition to ON.
B+
•  Related wiring harness
2F
Fuel injector No.2 power supply
Fuel injector No.2
Switch the ignition to ON.
B+
•  Related wiring harness
2G
Fuel injector No.3 power supply
Fuel injector No.3
Switch the ignition to ON.
B+
•  Related wiring harness
2H
Fuel injection control
Fuel injector No.4
(See Inspection Using An Oscilloscope (Reference).)
•  Fuel injector No.4
•  Related wiring harness
2I
Power supply
CMP sensor, Purge solenoid valve, OCV, CKP sensor, A/F sensor heater, HO2S heater
Switch the ignition to ON.
B+
•  Related wiring harness
2J
GND
ECT sensor, HO2S, MAP sensor
Under any condition
Below 1.0
•  Related wiring harness
2K*11
EGR control
EGR valve
Idle (EGR control operating)
Below 1.0
•  EGR valve
•  Related wiring harness
2L
Fuel injector No.4 power supply
Fuel injector No.4
Switch the ignition to ON.
B+
•  Related wiring harness
2M
GND
CMP sensor, CKP sensor, KS
Under any condition
Below 1.0
•  Related wiring harness
2N
CMP
CMP sensor
(See Inspection Using An Oscilloscope (Reference).)
•  CMP sensor
•  Related wiring harness
2O*11
EGR control
EGR valve
Idle (EGR control operating)
B+
•  EGR valve
•  Related wiring harness
2P*11
EGR control
EGR valve
Idle (EGR control operating)
B+
•  EGR valve
•  Related wiring harness
2Q
GND
IAT sensor
Under any condition
Below 1.0
•  Related wiring harness
2R
IAT
IAT sensor
Switch the ignition to ON.
IAT is 20 °C {68 °F}
Approx. 2.2
•  IAT sensor
•  Related wiring harness
IAT is 30 °C {86 °F}
Approx. 1.8
2S
Evaporative purge control
Purge solenoid valve
(See Inspection Using An Oscilloscope (Reference).)
•  Purge solenoid valve
•  Related wiring harness
2T*11
EGR control
EGR valve
Idle (EGR control operating)
Below 1.0
•  EGR valve
•  Related wiring harness
2U
GND
MAF sensor
Under any condition
Below 1.0
•  Related wiring harness
2V
MAF
MAF sensor
Switch the ignition to ON.
Approx. 0.7
•  MAF sensor
•  Related wiring harness
Idle
Approx. 1.3
2W
Variable valve timing control
OCV
(See Inspection Using An Oscilloscope (Reference).)
•  OCV
•  Related wiring harness
2X
A/F sensor heater control
A/F sensor heater
(See Inspection Using An Oscilloscope (Reference).)
•  A/F sensor heater
•  Related wiring harness
2Y
CKP
CKP sensor
(See Inspection Using An Oscilloscope (Reference).)
•  CKP sensor
•  Related wiring harness
2Z
A/F sensor
A/F sensor
Idle (after warm-up)
Approx. 0
•  A/F sensor
•  Related wiring harness
2AA
—
—
—
—
—
2AB
HO2S heater control
HO2S heater
Idle (after warm-up)
Below 1.0
•  HO2S heater
•  Related wiring harness
Heavy load
B+
2AC
ECT
ECT sensor
Switch the ignition to ON.
ECT is 20 °C {68 °F}
Approx. 3.0
•  ECT sensor
•  Related wiring harness
ECT is 80 °C {176 °F}
Approx. 0.9
2AD
A/F sensor
A/F sensor
Idle (after warm-up)
Approx. 2.4
•  A/F sensor
•  Related wiring harness
2AE
Generator output voltage
Generator (terminal P: stator coil)
(See Inspection Using An Oscilloscope (Reference).)
•  Generator
•  Related wiring harness
2AF
Generator field coil control
Generator (terminal D: field coil)
(See Inspection Using An Oscilloscope (Reference).)
•  Generator
•  Related wiring harness
2AG
Variable tumble control (+)
Variable tumble shutter valve actuator
The engine is hot.
Directly after the Switch the ignition to ON.
B+
•  Variable tumble shutter valve actuator
•  Related wiring harness
Idle after cold start.
When the ECT is increased instant and reaches 60 °C {140 °F}
Except above
Below 1.0
2AH
HO2S
HO2S
Idle (after warm-up)
Alternates between 0 and 1.0
•  HO2S
•  Related wiring harness
2AI
Variable intake air control (-)
Variable intake air shutter valve actuator
Directly after the Switch the ignition to ON.
B+
•  Variable intake air shutter valve actuator
•  Related wiring harness
When the engine speed is decreased gradually and reaches 4,100 rpm.
Except above
Below 1.0
2AJ
Variable intake air control (+)
Variable intake air shutter valve actuator
Directly after the Switch the ignition to ON.
Below 1.0
•  Variable intake air shutter valve actuator
•  Related wiring harness
When the engine speed is increased gradually and reaches 4,100 rpm.
B+
Except above
Below 1.0
2AK
Variable tumble control (-)
Variable tumble shutter valve actuator
The engine is cold.
Directly after the Switch the ignition to ON.
B+
•  Variable tumble shutter valve actuator
•  Related wiring harness
Except above
Below 1.0
2AL
—
—
—
—
—
2AM
—
—
—
—
—
2AN
Knocking
KS
Switch the ignition to ON. (Use digital type voltmeter, because measurement voltage will be detected less than true voltage when using analog type voltmeter.)
Approx. 2.4
•  KS
•  Related wiring harness
2AO*11
Constant voltage (Vref)
MAP sensor
Switch the ignition to ON.
Approx. 5.0
•  Related wiring harness
2AP*11
MAP sensor
MAP sensor
Switch the ignition to ON.
Barometric pressure: 13—200 kPa {98—1,500 mmHg, 3.8—59.1 inHg}
1.0—4.5
•  MAP sensor
•  Related wiring harness
2AQ
ESA control
Ignition coil No.1
(See Inspection Using An Oscilloscope (Reference).)
•  Ignition coil No.1
•  Related wiring harness
2AR
ESA control
Ignition coil No.2
(See Inspection Using An Oscilloscope (Reference).)
•  Ignition coil No.2
•  Related wiring harness
2AS
Constant voltage (Vref)
Throttle body (TP sensor)
Under any condition
Approx. 5.0
•  Related wiring harness
2AT
TP sensor No.2
TP sensor No.2
Switch the ignition to ON.
Accelerator pedal depressed
Approx. 0.5
•  TP sensor No.2
•  Related wiring harness
Accelerator pedal released
Approx. 3.9
2AU
ESA control
Ignition coil No.3
(See Inspection Using An Oscilloscope (Reference).)
•  Ignition coil No.3
•  Related wiring harness
2AV
ESA control
Ignition coil No.4
(See Inspection Using An Oscilloscope (Reference).)
•  Ignition coil No.4
•  Related wiring harness
2AW
Sensor GND
Throttle body (TP sensor)
Under any condition
Below 1.0
•  Related wiring harness
2AX
TP sensor No.1
TP sensor No.1
Switch the ignition to ON.
Accelerator pedal depressed
Approx. 4.5
•  TP sensor No.1
•  Related wiring harness
Accelerator pedal released
Approx. 1.1
2AY
—
—
—
—
—
2AZ
GND
GND
Under any condition
Below 1.0
•  Related wiring harness
2BA
GND
GND
Under any condition
Below 1.0
•  Related wiring harness
2BB
GND
GND
Under any condition
Below 1.0
•  Related wiring harness
2BC
Power supply
MAF sensor, EGR valve
Idle
B+
•  Related wiring harness
2BD
GND
GND
Under any condition
Below 1.0
•  Related wiring harness
2BE
Throttle control (–)
Throttle body (throttle valve actuator)
(See Inspection Using An Oscilloscope (Reference).)
•  Throttle valve actuator
•  Related wiring harness
2BF
Throttle control (+)
Throttle body (throttle valve actuator)
(See Inspection Using An Oscilloscope (Reference).)
•  Throttle valve actuator
•  Related wiring harness
2BG
GND
Sensor shield
Under any condition
Below 1.0
•  Related wiring harness
2BH
GND
GND
Under any condition
Below 1.0
•  Related wiring harness

*1  :With manual air conditioner
*2  :With full-auto air conditioner
*3  :With cruise control system
*4  :Without advanced keyless entry and push button start system
*5  :With advanced keyless entry and push button start system
*6  :MTX
*7  :ATX
*8  :ZY
*9  :With immobilizer system
*10  :Without immobilizer system
*11  :With EGR system

Inspection Using An Oscilloscope (Reference)


APP sensor (No.2) signal

Accelerator pedal released

aaxjjw00002881

Accelerator pedal depressed

aaxjjw00002882
PCM terminals
•  1Q (+)—body ground (–)
Oscilloscope setting
•  5 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
•  Idle after warm up


Fuel injection control signal

am2zzw00001204
PCM terminals
•  Fuel injector No.1: 2A (+)—Negative battery terminal (–)
•  Fuel injector No.2: 2B (+)—Negative battery terminal (–)
•  Fuel injector No.3: 2C (+)—Negative battery terminal (–)
•  Fuel injector No.4: 2H (+)—Negative battery terminal (–)
Oscilloscope setting
•  5 V/DIV (Y), 10 ms/DIV (X), DC range
Vehicle condition
•  Idle after warm-up


CMP signal

am2zzw00003587
PCM terminals
•  2N (+)—Negative battery terminal (–)
Oscilloscope setting
•  1 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
•  Idle after warm-up


Evaporative purge control signal

am2zzw00003588
PCM terminals
•  2S (+)—Negative battery terminal (–)
Oscilloscope setting
•  10 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
•  Idle after warm-up


Variable valve timing control signal

am2zzw00003589
PCM terminals
•  2W (+)—Negative battery terminal (–)
Oscilloscope setting
•  10 V/DIV (Y), 10 ms/DIV (X), DC range
Vehicle condition
•  Idle after warm-up


A/F sensor heater control signal

am2zzw00003590
PCM terminals
•  2X (+)—Negative battery terminal (–)
Oscilloscope setting
•  5 V/DIV (Y), 50 ms/DIV (X), DC range
Vehicle condition
•  Idle after warm-up (no load condition)


CKP signal

am2zzw00003591
PCM terminals
•  2Y(+)—Negative battery terminal (–)
Oscilloscope setting
•  5 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
•  Idle after warm-up


Generator output voltage signal

am2zzw00001210
PCM terminals
•  2AE (+)—Negative battery terminal (–)
Oscilloscope setting
•  2 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
•  Idle after warm-up


Generator field coil control signal

am2zzw00001211
PCM terminals
•  2AF (+)—Negative battery terminal (–)
Oscilloscope setting
•  0.5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
•  Idle after warm-up


ESA control signal

am2zzw00001212
PCM terminals (except for California emission regulation applicable model)
•  Ignition coil No.1: 2AQ (+)—Negative battery terminal (–)
•  Ignition coil No.2: 2AR (+)—Negative battery terminal (–)
•  Ignition coil No.3: 2AU (+)—Negative battery terminal (–)
•  Ignition coil No.4: 2AV (+)—Negative battery terminal (–)
Oscilloscope setting
•  0.5 V/DIV (Y), 40 ms/DIV (X), DC range
Vehicle condition
•  Idle after warm-up


Throttle control (–) signal

adejjw00002871
PCM terminals
•  2BE (+)—Negative battery terminal (–)
Oscilloscope setting
•  10 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
•  When the accelerator pedal changes from fully depressed to fully released while the ignition switch is in the ON position


Throttle control (+) signal

am2zzw00003592
PCM terminals
•  2BF (+)—Negative battery terminal (–)
Oscilloscope setting
•  5 V/DIV (Y), 0.4 ms/DIV (X), DC range
Vehicle condition
•  Switch the ignition to ON.


Using The M-MDS

Note
•  PIDs for the following parts are not available on this model. Go to the appropriate part inspection page.
―  CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [ZY, Z6].)
―  Main relay (See RELAY INSPECTION.)

1.  Connect the M-MDS to the DLC-2.

am3uuw00002395

2.  Turn the ignition switch to the ON position.

3.  Measure the PID value.

•  If PID value is not within the specification, follow the instructions in Action column.
Note
•  The PID/DATA MONITOR function monitors the calculated value of the input/output signals in the PCM. Therefore, an output device malfunction is not directly indicated as a malfunction of the monitored value for the output device. If a monitored value of an output device is out of specification, inspect the monitored value of the input device related to the output control.
•  The simulation items that are used in the ENGINE CONTROL SYSTEM OPERATION INSPECTION are as follows.
―  ACCS, ALTF, ARPMDES, EVAPCP, FAN1, FAN3, FP, IMRC, IMTV, INJ_1, INJ_2, INJ_3, INJ_4, SEGRP, TEST, VT Duty1 wt

Item (definition)

Unit/Condition

Condition/Specification (Reference)

Inspection item(s)

PCM terminal
AC_REQ
(A/C request signal)
OFF/ON
•  A/C switch OFF: OFF
•  A/C switch ON: ON
•  Perform applicable DTC trouble shooting
—
ACCS
(A/C relay)
OFF/ON
•  A/C relay is OFF: OFF
•  A/C relay is ON: ON
•  A/C relay
•  The following PIDs
―  PCM_T, TP1, TP2, MAP, ECT, RPM, CPP/PNP, CPP, VSS
1AO
AFR
(Target air fuel ratio)
—
•  Target air fuel ratio is displayed
•  A/F sensor
—
AFR_ACT
(Actual air fuel ratio)
—
•  Actual air fuel ratio is displayed
•  A/F sensor
2Z
2AD
ALT_CUR_S*1
(Current sensor)
V
•  Idle: 0.5—4.5 V
•  Current sensor
1AL
ALTF
(Generator field coil control duty value)
%
•  Idle, E/L is operating: Duty value increases
•  Generator
•  The following PIDs
―  MAP, ECT, RPM, VSS, VPWR, ALTT V
2AF
ALTT V
(Generator output voltage)
V
•  Idle (no E/L): Approx. 14 V (This is an internal calculation value and differs from the terminal voltage.)
•  Generator
2AE
APP*2
(Accelerator pedal position)
%
•  Accelerator pedal released: Approx. 0 %
•  Accelerator pedal depressed: Approx. 100 %
•  The following PIDs
―  APP1, APP2
—
APP1
(APP sensor No.1)
%
•  Accelerator pedal released: Approx. 15 %
•  Accelerator pedal depressed: Approx. 67 %
•  APP sensor No.1
1AD
V
•  Accelerator pedal released: Approx. 0.4 V
•  Accelerator pedal depressed: Approx. 3.4 V
APP2
(APP sensor No.2)
%
•  Accelerator pedal released: Approx. 8 %
•  Accelerator pedal depressed: Approx. 67 %
•  APP sensor No.2
1Q
V
•  Accelerator pedal released: Approx. 0.4 V
•  Accelerator pedal depressed: Approx. 3.4 V
ARPMDES
(Target engine speed)
RPM
•  Indicate the target engine speed
•  The following PIDs
―  APP1, APP2, TP1, TP2, MAF, IAT, ECT, RPM, BOO, SCCS, CPP/PNP, CPP, COLP, BARO, VSS, ALTT V
—
BARO*1
(Barometric pressure)
Pa
•  Indicate the BARO
•  BARO sensor
—
V
•  Switch the ignition to ON (at sea level): approx. 4.1 V
BATT_CUR*1
(Battery current)
A
•  Indicate the battery current
•  Current sensor
1AL
BOO
(Brake switch (No.1 signal))
OFF/ON
•  Brake pedal depressed: ON
•  Brake pedal released: OFF
•  Brake switch (No.1 signal)
1G
BPA*10
(Brake switch (No.2 signal))
OFF/ON
•  Brake pedal depressed: ON
•  Brake pedal released: OFF
•  Brake switch (No.2 signal)
—
CATT11_DSD*4
(Estimated catalytic converter temperature)
°C
°F
Indicates the estimated catalytic converter temperature
•  Perform applicable DTC troubleshooting.
—
CHRGLP
(Generator warning light)
OFF/ON
•  Switch the ignition to ON: ON
•  Idle: OFF
•  Perform applicable DTC troubleshooting.
—
COLP
(Refrigerant pressure switch (middle))
OFF/ON
•  Refrigerant pressure is more than the specification.: On
•  Refrigerant pressure is less than the specification.: Off
•  Refrigerant pressure switch (middle)
1AC
CPP*5
(Clutch pedal position)
OFF/ON
•  Clutch pedal depressed: On
•  Clutch pedal released: Off
•  CPP switch
1M
CPP/PNP*5
(Shift lever position)
OFF/ON
•  Neutral: On
•  Other than neutral: Off
•  Neutral switch
1J
DWN SW*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
ECT
(Engine coolant temperature)
°C
°F
•  Indicate the ECT
•  ECT sensor
2AC
V
•  ECT is 20 °C {68 °F}: Approx. 3.0 V
•  ECT is 80 °C {176 °F}: Approx. 0.9 V
EQ_RAT11
(Equivalence ratio (lambda))
—
•  Idle after warm-up: Approx. 1
•  A/F sensor
2Z
2AD
EQ_RAT11_DSD
(Desired equivalence ratio (lambda))
—
•  Indicate the target lambda (Excess air factor = supplied air amount / theoretical air/fuel ratio)
•  A/F sensor
—
ETC_ACT
(Electronic throttle control actual)
°
•  Indicate the TP angle
•  Throttle valve actuator
2BE
2BF
ETC_DSD
(Electronic throttle control desired)
%
•  Indicate the target TP angle (percent)
•  Throttle valve actuator
•  The following PIDs
―  APP1, APP2, TP1, TP2, MAF, IAT, ECT, RPM, BOO, SCCS, CPP/PNP, CPP, COLP, BARO, VSS, ALTT V
—
°
•  Indicate the target TP angle
EVAPCP
(Purge solenoid valve duty value)
%
•  Switch the ignition to ON: 0 %
•  Idle: 0 %
•  Purge solenoid valve
•  The following PIDs
―  TP1, TP2, MAF, IAT, MAP, ECT, O2S11, O2S12, RPM, BOO, BARO, VPWR
2S
FAN1
(Cooling fan relay No.1 control signal)
OFF/ON
•  During test mode
CTP: Off
WOT: On
•  Cooling fan relay No.1
•  The following PIDs
―  ECT, COLP
1AV
FAN3
(Cooling fan relay No.2, No.3 control signal)
OFF/ON
•  During test mode
CTP: Off
WOT: On
•  Cooling fan relay No.2, No.3
•  The following PIDs
―  ECT, COLP
1AZ
FP
(Fuel pump relay)
OFF/ON
•  Switch the ignition to ON: OFF
•  Cranking: ON
•  Idle: ON
•  Fuel pump relay
•  The following PIDs
1AQ*8
1AR*9
FUELPW
(Fuel injector duration)
sec
•  Idle: Approx. 1.8 ms
•  Fuel injector
•  The following PIDs
―  APP1, APP2, TP1, TP2, MAF, IAT, MAP, ECT, O2S11, O2S12, RPM, BOO, COLP, BARO, VSS, VPWR
2A
2B
2C
2H
FUELSYS
(Fuel system status)
OL/CL/
OL_Drive/
OL_Fault/
CL_Fault
•  Idle after warm-up: CL
•  Fuel injector
•  The following PIDs
―  APP1, APP2, TP1, TP2, MAF, IAT, MAP, ECT, O2S11, O2S12, RPM, BOO, COLP, BARO, VSS, VPWR
—
GEAR*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
HTM_CNT*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
HTM_DIS*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
HTR11
(A/F sensor heater)
OFF/ON
•  Idle (after warm up): ON↔OFF
•  A/F sensor heater
•  Inspect following PIDs
―  TP1, TP2, MAF, IAT, MAP, ECT, RPM, VPWR
2X
HTR12
(HO2S heater control)
OFF/ON
•  Idle (after warm up): ONÛOFF
•  HO2S heater control
•  The following PIDs
―  TP1, TP2, MAF, IAT, MAP, ECT, RPM, VPWR
2AB
IAT
(Intake air temperature)
°C
°F
•  Indicate the IAT
•  IAT sensor
2R
V
•  IAT is 20 °C {68 °F}: Approx. 2.2 V
•  IAT is 30 °C {86 °F}: Approx. 1.8 V
IMRC
(Variable tumble control)
OFF/ON
•  ECT below 60 °C {140 °F} and engine speed below 3,250 rpm: ON
•  ECT above 60 °C {140 °F} while idling.: OFF
•  Variable tumble shutter valve actuator
•  The following PIDs
―  APP1, APP2, TP1, TP2, MAF, ECT, RPM
2AG
2AK
%
•  Indicate the variable tumble shutter valve opening ratio
IMTV
(Variable intake air control)
OFF/ON
•  Engine speed is less than 4,100 rpm: ON
•  Engine speed is 4,100 rpm or more: OFF
•  Variable intake air shutter valve actuator
•  The following PIDs
―  APP1, APP2, TP1, TP2, RPM
2AI
2AJ
%
•  Indicate the variable intake air shutter valve opening ratio
INGEAR
(Gears are engaged)
OFF/ON
MTX
•  When the following conditions are satisfied: ON
―  Other than neutral
―  Clutch pedal released
•  Except above: OFF
ATX, CVT
•  R, D, M range: ON
•  Except above: OFF
MTX
•  CPP switch
•  Neutral switch
1M
1J
ATX, CVT
•  TR switch
1AS
IVS
(CTP condition)
Idle/Off Idle
•  Idle: Idle
•  Racing: Off Idle
•  Perform applicable DTC troubleshooting.
—
KNOCKR
(Knocking retard)
°
•  Switch the ignition to ON: 0 °
•  Idle: 0 °
•  KS
2AN
LINEDES*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
LOAD
(Engine load)
%
•  Idle after warm-up: Approx. 20 %
•  The following PIDs
―  MAP, IAT, MAF, RPM
—
LONGFT1
(Long term fuel trim)
%
•  Idle after warm-up: Approx.-15—15 %
•  The following PIDs
―  APP1, APP2, TP1, TP2, MAF, IAT, MAP, ECT, O2S11, O2S12, RPM, BOO, COLP, BARO, VSS, VPWR
—
LPS*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
MAF
(Mass airflow)
g/sec
•  Indicate the MAF
•  MAF sensor
2V
V
•  Switch the ignition to ON: Approx. 0.7 V
•  Idle (after warm up): Approx. 1.3 V
MAP*4
(Manifold absolute pressure)
Pa
•  Indicate the MAP
•  MAP sensor
2AP
V
•  Switch the ignition to ON
―  Barometric pressure: 13—200 kPa {98—1,500 mmHg, 3.8—59.1 inHg}: 1.0—4.5 V
MIL
(Malfunction indicator lamp)
OFF/ON
•  Idle, MIL illuminate: ON
•  Idle, MIL not illuminate: OFF
•  Perform applicable DTC troubleshooting.
—
MIL_DIS
(Travelled distance since the MIL illuminated)
km
•  Indicate the travelled distance since the MIL illuminated
•  Perform applicable DTC troubleshooting.
—
MNL SW*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
O2S11
(A/F sensor)
A
•  Idle (after warm up): Approx. 0 mA
•  A/F sensor
2Z
2AD
O2S12
(HO2S)
V
•  Idle (after warm up): 0—1.0 V
•  HO2S
2AH
OSS*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
PCM_T
(PCM temperature sensor)
°C
°F
•  Indicate the PCM temperature
•  PCM temperature sensor
—
PCM_T_MAX
(Maximum PCM temperature)
°C
°F
•  Indicate the maximum PCM temperature
•  PCM
—
RO2FT1
(HO2S fuel trim)
%
•  Idle (after warm up): Approx. 0
•  Perform applicable DTC troubleshooting.
—
RPM
(Engine speed)
RPM
•  Indicate the engine speed
•  CKP sensor
2Y
SCCS*3
(Cruise control switch)
V
•  OFF switch pressed in: approx. 0 V
•  CANSEL switch pressed in: approx. 1.4 V
•  SET(-) switch pressed in: approx. 2.4 V
•  SET(+) switch pressed in: approx. 3.2 V
•  RESUME switch pressed in: approx. 3.9 V
•  ON switch pressed in: approx. 4.3 V
•  Except above: approx. 4.6
•  Cruise control switch
1AU
SEGRP*7
(EGR control)
—
•  Switch the ignition to ON: 0
•  Idle: 0
•  Engine speed is 1,187—4,200 rpm: 0—52
•  EGR valve
2K
2O
2P
2T
SEGRP DSD*7
(Desired EGR valve position)
%
•  Indicate the desired EGR valve position
•  EGR valve
•  The following PIDs
―  TP1, TP2, MAF, IAT, MAP, ECT, RPM, CPP/PNP, CPP, VSS
—
SHRTFT1
(Short term fuel trim)
%
•  Idle (after warm up):-25—25 %
•  Perform applicable DTC troubleshooting.
—
SPARKADV
(Ignition timing)
°
•  Indicate the ignition timing
•  Ignition coil
•  The following PIDs
―  APP1, APP2, TP1, TP2, MAF, IAT, ECT, RPM, KNOCKR, BOO, CPP/PNP, CPP
2AQ
2AR
2AU
2AV
SSA/SS1*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
SSB/SS2*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
SSC/SS3*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
SSD/SS4*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
SSE/SS5*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
TEST
(Test mode)
OFF/ON
•  Test mode ON: ON
•  Test mode OFF: OFF
—
—
TFT*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
TFTV*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
TP REL
(Relative throttle position)
%
•  Accelerator pedal released: Approx. 12 %
•  Accelerator pedal depressed: Approx. 81 %
•  The following PIDs
―  TP1, TP2
—
TP1
(TP sensor No.1)
V
•  Accelerator pedal released: Approx. 1.1 V
•  Accelerator pedal depressed: Approx. 4.5 V
•  TP sensor No.1
2AX
%
•  Accelerator pedal released: Approx. 23%
•  Accelerator pedal depressed: Approx. 91 %
TP2
(TP sensor No.2)
V
•  Accelerator pedal released: Approx. 3.9 V
•  Accelerator pedal depressed: Approx. 0.5 V
•  TP sensor No.2
2AT
%
•  Accelerator pedal released: Approx. 22 %
•  Accelerator pedal depressed: Approx. 91 %
TPCT
(TP sensor voltage at CTP)
V
•  Switch the ignition to ON: Approx. 0.5 V
•  TP sensor No.1, No.2
2AT
2AX
TR*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
TR_SENS*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
TSS*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
UP SW*6
(See ON-BOARD DIAGNOSTIC SYSTEM PID/DATA MONITOR INSPECTION [FN4A-EL].)
VPWR
(Battery positive voltage)
V
•  Indicate the battery voltage
•  Battery
1BC
VSS
(Vehicle speed)
KPH
•  Indicate the vehicle speed
•  DSC HU/CM
—
VT ACT1
(Actual valve timing)
°
•  Idle: Approx. 0 °
•  Racing (after warm up): 0—35 °
•  CMP sensor
•  CKP sensor
2N
2Y
VT DIFF1
(Difference between target valve timing and actual valve timing)
°
•  Idle: approx. 0°
•  CMP sensor
•  The following PIDs
―  RPM, LOAD, VT ACT1
—
VT DUTY1
(OCV control)
%
•  Idle: Approx. 15 %
•  OCV
•  The following PIDs
―  APP1, APP2, TP1, TP2, MAF, ECT, RPM, CPP/PNP, CPP, VSS
2W

*1  :ZY
*2  :Z6 ATX
*3  :With cruise control system
*4  :If equipped
*5  :MTX
*6  :ATX
*7  :With EGR system
*8  :With immobilizer system
*9  :Without immobilizer system
*10  :With cruise control system or from BL****-198281,BL1***-239890
