NEUTRAL SWITCH INSPECTION [MZR 2.0 DISI i-stop]

id0140j1800800

Neutral switch No.1

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)

2.  Disconnect the negative battery cable.

3.  Remove the neutral switch No.1. (See NEUTRAL SWITCH NO.1 REMOVAL/INSTALLATION [G66M-R (MZR 2.0 DISI i-stop)].)

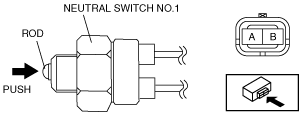

4.  Inspect for continuity between the neutral switch No.1 terminals using an ohmmeter.

am3zzw00008190

•  If not as specified, replace the neutral switch No.1. (See NEUTRAL SWITCH NO.1 REMOVAL/INSTALLATION [G66M-R (MZR 2.0 DISI i-stop)].)

Neutral switch No.2

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)

2.  Disconnect the negative battery cable.

3.  Remove the neutral switch No.2. (See NEUTRAL SWITCH NO.2 REMOVAL/INSTALLATION [G66M-R (MZR 2.0 DISI i-stop)].)

4.  Inspect for continuity between the neutral switch No.2 terminals using an ohmmeter.

am3zzw00008191

•  If not as specified, replace the neutral switch No.2. (See NEUTRAL SWITCH NO.2 REMOVAL/INSTALLATION [G66M-R (MZR 2.0 DISI i-stop)].)
