FRONT STABILIZER REMOVAL/INSTALLATION [EXCEPT L3 Turbo]
id0213008004c2
1. Remove the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
2. Disconnect the steering shaft from the steering gear and linkage. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
3. Remove the front auto leveling sensor. (Vehicle with discharge headlight system) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION.)
4. Remove the front crossmember component. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [ZY, Z6, LF, L3 Turbo, L5, MZ-CD 1.6 (Y6)].) (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [MZR-CD 2.2].)
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
7. Inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT.)

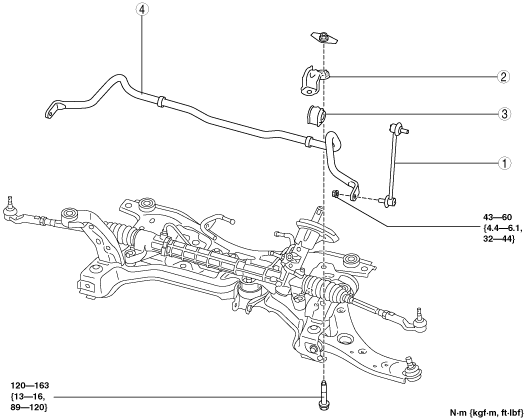

am3uuw00005584
|
|
1
|
Stabilizer control link
|
|
2
|
Stabilizer bracket
|
|
3
|
Stabilizer bushing
|
|
4
|
Front stabilizer
|

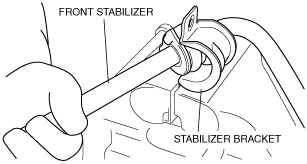

Stabilizer Bracket Removal Note
1. Secure the stabilizer bracket flange using a vise.
am3uuw00000870
|
2. Remove the front stabilizer.
Front Stabilizer, Stabilizer Bushing and Stabilizer Bracket Installation Note
1. Install the stabilizer bushing so that the projection points to the right side of the vehicle.
am3uuw00003226
|
2. Point the direction indicator on the stabilizer bracket inward and install stabilizer bracket using a vise.
am3uuw00003227
|
3. Temporarily install the front stabilizer component.
4. Tighten the bolts following order.
am3uuw00002828
|
