AUTO LEVELING SENSOR REMOVAL/INSTALLATION

id091800805700

Front

1.  Disconnect the negative battery cable.

2.  Lift up the vehicle.

3.  Remove in the order indicated in the table.

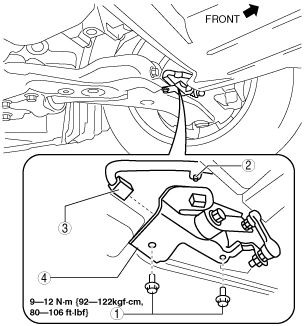

am3uuw00004429

1	Bolt
2	Clip
3	Connector
4	Front auto leveling sensor

4.  Install in the reverse order of removal.

5.  Perform the auto leveling system initialization. (See AUTO LEVELING SYSTEM INITIALIZATION.)

Rear

1.  Disconnect the negative battery cable.

2.  Lift up the vehicle.

3.  Disconnect the charcoal canister connector. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [LF, L5].) (See CHARCOAL CANISTER REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See CHARCOAL CANISTER REMOVAL/INSTALLATION [ZY, Z6].) (See CHARCOAL CANISTER REMOVAL/INSTALLATION [L3 Turbo].)

4.  Remove in the order indicated in the table.

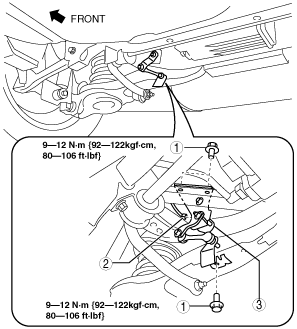

am3uuw00004430

1	Bolt
2	Connector
3	Rear auto leveling sensor

5.  Install in the reverse order of removal.

6.  Perform the auto leveling system initialization. (See AUTO LEVELING SYSTEM INITIALIZATION.)
