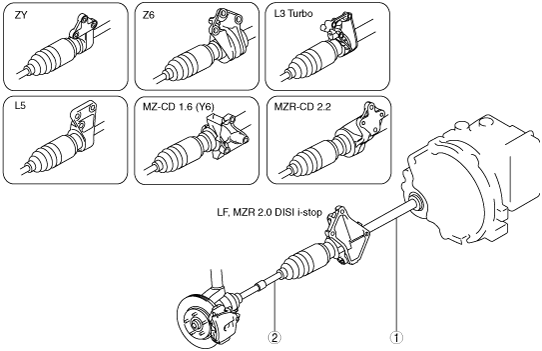

DRIVE SHAFT LOCATION INDEX

id031300800100

am3zzw00008753

1

Joint shaft (See JOINT SHAFT INSPECTION.) (See JOINT SHAFT REMOVAL/INSTALLATION [ZY, Z6, L3 Turbo, L5].) (See JOINT SHAFT REMOVAL/INSTALLATION [LF, MZR 2.0 DISI i-stop].) (See JOINT SHAFT REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6), MZR-CD 2.2].) (See JOINT SHAFT DISASSEMBLY [ZY].) (See JOINT SHAFT DISASSEMBLY [Z6].) (See JOINT SHAFT DISASSEMBLY [LF, MZR 2.0 DISI i-stop, L5].) (See JOINT SHAFT DISASSEMBLY [L3 Turbo].) (See JOINT SHAFT DISASSEMBLY [MZR-CD 2.2].) (See JOINT SHAFT ASSEMBLY [ZY].) (See JOINT SHAFT ASSEMBLY [Z6].) (See JOINT SHAFT ASSEMBLY [LF, MZR 2.0 DISI i-stop, L5 (MTX)].) (See JOINT SHAFT ASSEMBLY [L3 Turbo].) (See JOINT SHAFT ASSEMBLY [L5 (ATX)].) (See JOINT SHAFT ASSEMBLY [MZR-CD 2.2].)

2

Drive shaft (See DRIVE SHAFT INSPECTION.) (See DRIVE SHAFT REMOVAL/INSTALLATION.) (See DRIVE SHAFT (TRIPOD JOINT) DISASSEMBLY/ASSEMBLY.) (See DRIVE SHAFT (DOUBLE OFFSET JOINT) DISASSEMBLY/ASSEMBLY.)
