BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION [A26M-R]

id0515l1800800

1. Disconnect the negative battery cable.

2. Disconnect the back-up light switch connector.

3. Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

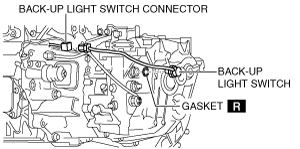

4. Remove the back-up light switch.

am3zzw00008745

5. Install the back-up light switch (with a new gasket) to the transaxle case.

Tightening torque

29—52 N·m {2.9—5.3 kgf·m, 21—38 ft·lbf}

6. Install the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

7. Connect the negative battery cable.
