TRANSAXLE RANGE (TR) SWITCH INSPECTION [DJVA-EL]


id051901285600

Caution
•  Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

Operating Inspection

1.  Perform the following procedures to inspect the TR switch.

•  If there is any malfunction, adjust the TR switch. (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT [DJVA-EL].)
(1)  Verify that the starter operates only when the ignition is switched to START with the selector lever in P or N position.
(2)  Verify that the back-up lights illuminate when selected to R position with the ignition at ON.
(3)  Verify that the positions of the selector lever and the selector indicator light are aligned.


On-Vehicle Inspection

1.  Perform the following procedures.

(1)  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [ZY, Z6].)
(2)  Disconnect the negative battery cable.
(3)  Disconnect the TR switch connector.
am3zzw00008501

2.  Inspect continuity as indicated in the table.

am3zzw00008502

•  If there is any malfunction, adjust the TR switch. (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT [DJVA-EL].)
am3zzw00008731


Wiring Harness Inspection

1.  Perform the following procedures.

(1)  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [ZY, Z6].)
(2)  Disconnect the negative battery cable.
(3)  Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(4)  Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)
(5)  Partially peel back the floor covering. (See FLOOR COVERING REMOVAL/INSTALLATION.)
(6)  Disconnect the TCM and TCM bracket as a single unit. (See TCM REMOVAL/INSTALLATION [DJVA-EL].)

2.  Switch the ignition to ON (Engine off).

3.  Inspect for continuity between TR switch and TCM using a tester.

•  If there is any malfunction, repair or replace the wiring harness.

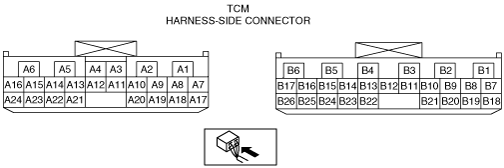

am3zzw00008444

TR switch specification

Terminal

Specification (V)

P position

R position

N position

D range

B20—GND
VB
0V
0V
0V
B1—GND
0V
VB
0V
0V
B8—GND
0V
0V
VB
0V
B7—GND
0V
0V
0V
VB
