FLOOR COVERING REMOVAL/INSTALLATION
id091700803000
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)
- (2) Audio amplifier (Vehicles with Bose®) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)
- (3) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (4) Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
- (5) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (6) Fuel-filler lid opener bezel (See FUEL-FILLER LID OPENER BEZEL REMOVAL/INSTALLATION.)
- (7) Selector lever knob (ATX/CVT) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (8) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (9) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
- (10) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
- (11) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (12) Console (See CONSOLE REMOVAL/INSTALLATION.)
- (13) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (14) Lower anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (15) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (16) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (17) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

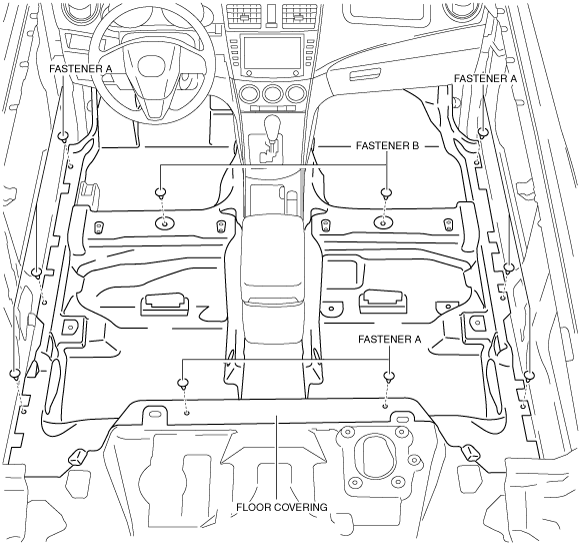

3. Remove fasteners A and B.
4. Take the floor covering out from the opened door.
5. Install in the reverse order of removal.
