REAR HEAT DUCT REMOVAL/INSTALLATION

id071100800900

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Console (See CONSOLE REMOVAL/INSTALLATION.)

(3)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4)  Fuel-filler lid opener lever cover (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

3.  Turn the floor covering over.

4.  Remove in the order indicated in the table.

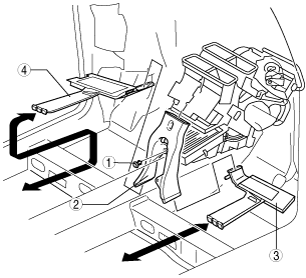

am3uuw00004009

1	Fastener
2	Rear heat duct (1)
3	Rear heat duct (2)
4	Rear heat duct (3)

5.  Install in the reverse order of removal.
