FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION

id091400510700

Fuel-filler Lid Opener

4SD

1.  Open the fuel-filler lid.

2.  Remove the following parts:

(1)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(2)  Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3.  Remove the nut.

am3uuw00002955

4.  Remove the lift spring.

am3uuw00002956

5.  Pull out the fuel-filler lid opener in the direction of the arrow (1).

am3uuw00002957

6.  Disconnect the fuel-filler lid opener from the fuel-filler lid opener cable.

am6zzw00000840

7.  Install in the reverse order of removal.

5HB

1.  Open the fuel-filler lid.

2.  Remove the following parts:

(1)  Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(3)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(4)  Tire house trim (RH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(5)  Trunk side upper trim (RH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(6)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(7)  Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

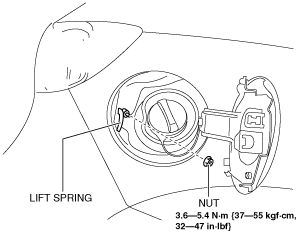

3.  Remove the nut.

am3uuw00004464

4.  Remove the lift spring.

am3uuw00002956

5.  Pull out the fuel-filler lid opener in the direction of the arrow (1).

am3uuw00002957

6.  Disconnect the fuel-filler lid opener from the fuel-filler lid opener cable.

am6zzw00000840

7.  Install in the reverse order of removal.

Fuel-filler Lid Opener Lever

1.  Remove the front scuff plate (driver's side). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

2.  Remove the front side trim (driver's side). (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

3.  Remove the fuel-filler lid opener bezel. (See FUEL-FILLER LID OPENER BEZEL REMOVAL/INSTALLATION.)

4.  Partially peel back the floor covering.

am3uuw00004356

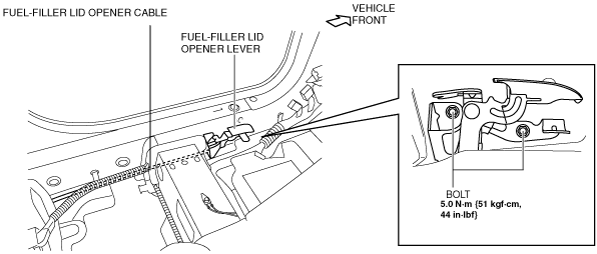

5.  Remove the bolts.

am3uuw00002958

6.  Disconnect the cable and fuel-filler lid opener lever.

7.  Install in the reverse order of removal.
