A/C COMPRESSOR REMOVAL/INSTALLATION


id071100801000

1.  Disconnect the negative battery cable.

2.  Discharge the refrigerant. (See REFRIGERANT CHARGING.)

3.  Remove the front under cover.

4.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [LF, L5].) (See DRIVE BELT REMOVAL/INSTALLATION [L3 Turbo].) (See DRIVE BELT REMOVAL/INSTALLATION [ZY, Z6].) (See DRIVE BELT REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)].) (See DRIVE BELT REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO5 emission level)].) (See DRIVE BELT REMOVAL/INSTALLATION [MZR-CD 2.2].)

5.  Remove the water hose bracket.

am6xuw00000992

Caution
•  If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise or other malfunction could occur. Always plug open fittings immediately after removing any refrigeration cycle parts.

6.  Remove the clip (LF, MZR 2.0 DISI i-stop).

am3uuw00004010

7.  Disconnect the connector.

8.  Remove the bolt A.

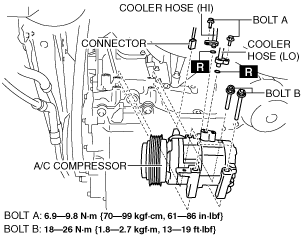

L5, L3 Turbo

am3zzw00007353

LF, MZR 2.0 DISI i-stop

am3zzw00006949

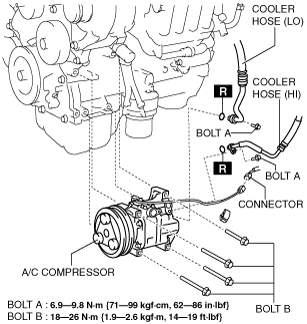

Z6, ZY

am3zzw00006709

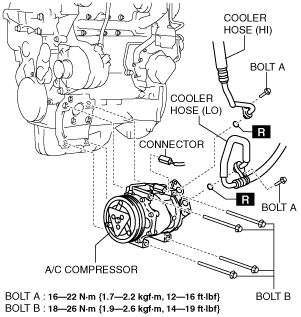

MZ-CD 1.6 (Y6) (EURO4 emission level)

am3zzw00006710

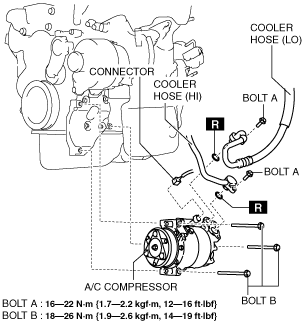

MZ-CD 1.6 (Y6) (EURO5 emission level)

am3zzw00009730

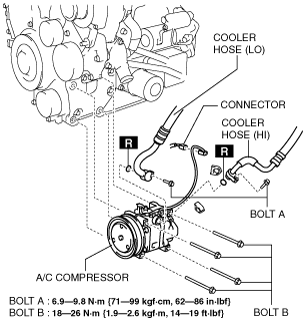

MZR-CD 2.2

am3zzw00006711

9.  Remove the cooler hose (LO). (See REFRIGERANT LINE REMOVAL/INSTALLATION.)

10.  Remove the cooler hose (HI). (See REFRIGERANT LINE REMOVAL/INSTALLATION.)

11.  Remove the nut and protector (LF, MZR 2.0 DISI i-stop).

12.  Remove the bolt B.

13.  Remove the A/C compressor. Do not allow compressor oil to spill. (See A/C Compressor Installation Note.)

14.  Install in the reverse order of removal.

15.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)


A/C Compressor Installation Note

Caution
•  Due to the high moisture-absorption characteristics of the compressor oil, it may absorb moisture if left over a long period of time thereby negatively affecting A/C operation. Drain the compressor oil and refill within 10 min. of each other.

1.  Rotate new A/C compressor shaft six to eight revolutions while collecting refrigerant oil in a clean measuring device. Use this refrigerant oil to refill new compressor. Do not allow refrigerant oil to become contaminated.

2.  Rotate old A/C compressor shaft six to eight revolutions while collecting refrigerant oil in a separate, clean measuring device.

3.  Compare those oil amounts. The amount of the oil drained from the new A/C compressor should be greater than the old one.

4.  Pour the same amount oil of drained from the old A/C compressor back into the new A/C compressor.

am8rrw00000755

A/C compressor oil type
ATOMOS GU10 (Z6, ZY, MZR-CD 2.2)
FD46XG (L5, LF, MZR 2.0 DISI i-stop, L3 Turbo)
SP-10 (MZ-CD 1.6 (Y6))
A/C compressor oil sealed volume (approx. quantity)
120 ml {120 cc, 4.06 fl oz} (L5, LF, MZR 2.0 DISI i-stop, Z6, MZR-CD 2.2, L3 Turbo, ZY)
135 ml {135 cc, 4.56 fl oz} (MZ-CD 1.6 (Y6) (EURO4 emission level))
110 ml {110 cc, 3.72 fl oz} (MZ-CD 1.6 (Y6) (EURO5 emission level))
