CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER]


id0740a2802200

1.  Remove the climate control unit with the connector connected. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

2.  Switch the ignition to ON.

3.  Connect the negative (-) lead of the tester to the body ground.

4.  By inserting the positive (+) lead of the tester into the climate control unit connector, measure the voltage according to the terminal voltage table.

•  If there is any malfunction, inspect the parts under “Inspection item(s)”.
―  If the parts under “Inspection item(s)” are normal, replace the climate control unit.

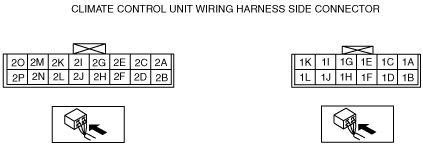

am3uuw00004198

Terminal Voltage Table (Reference)

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item(s)

1A
1B
Motor operation
Air intake actuator
Switched to RECIRCULATE
B+
•  Related wiring harness
•  Air intake actuator
Switched to FRESH
1.0 or less
1C
Evaporator temperature sensor input
Evaporator temperature sensor
Compared with temperature detected by evaporator temperature sensor
Refer to graph 1
•  Related wiring harness
•  Evaporator temperature sensor
•  Climate control unit: terminal voltage (1G)
1D
1E
1F
Motor operation
Air intake actuator
Switched to RECIRCULATE
1.0 or less
•  Related wiring harness
•  Air intake actuator
Switched to FRESH
B+
1G
Sensor GND
•  Evaporator temperature sensor
•  Refrigerant pressure sensor*3
Under any condition
1.0 or less
•  Related wiring harness
•  Evaporator temperature sensor
•  Refrigerant pressure sensor*3
•  Climate control unit: terminal voltage (1H)
1H*3
+5 V
Refrigerant pressure sensor
Switch the ignition to ON
5
•  Related wiring harness
•  Climate control unit: terminal voltage (1G)
1I
Ground
Body ground
Under any condition
1.0 or less
•  Related wiring harness
1J
1K
1L
Blower fan ON/OFF signal
Fan switch
Fan stopped
B+
•  Related wiring harness
•  Resistor
•  Fan switch terminal voltage (D)
Fan on
1.0 or less
2A
Illumination (-)
Instrument cluster
Headlight ON and panel light control MAX
2.0
•  Instrument cluster
•  Related wiring harness
Headlight ON and panel light control MIN
9.65
2B
B+
ROOM 15 A fuse
Switch the ignition to ON
B+
•  Related wiring harness
•  ROOM 15 A fuse
Switch the ignition to Off
1.0 or less
2C
2D*3
LIN
BCM
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
•  Related wiring harness
2E
2F
TNS signal
TNS relay
Headlight switch OFF
1.0 or less
•  Related wiring harness
•  TNS relay
•  BCM
•  Headlight switch
Headlight switch ON
B+
2G
2H
IG2
HEATER 10 A fuse
Switch the ignition to ON
B+
•  Related wiring harness
•  HEATER 10 A fuse
Switch the ignition to Off
1.0 or less
2I*1
Heated windshield signal
Heated windshield relay
Engine ON and heated windshield switch OFF
B+
•  Related wiring harness
•  Heated windshield relay
Engine ON and approx. 5s after heated windshield switch ON
1.0 or less
2J*3
Refrigerant pressure sensor signal
Refrigerant pressure sensor
Compared with pressure detected by refrigerant pressure sensor
•  Related wiring harness
•  Refrigerant pressure sensor
•  Climate control unit: terminal voltage (1G, 1H)
2K
Rear window defroster indicator
BCM
Rear window defroster switch OFF
11.12
•  Related wiring harness
•  BCM
Rear window defroster switch ON
1.0 or less
2L*2
PTC request
Instrument cluster
PTC heater stopped
5.0
•  Related wiring harness
•  Instrument cluster
PTC heater operation
1.0 or less
2M
2N
2O
Rear window defroster signal
BCM
While pressed rear window defroster switch
1.0 or less
•  Related wiring harness
•  Rear window defroster switch
•  BCM
Released rear window defroster switch
4.7
2P
A/C signal
Instrument cluster
A/C ON
1.0 or less
•  Related wiring harness
•  Instrument cluster
A/C OFF
4.8

*1  :Vehicles with heated windshield
*2  :Vehicles with PTC heater
*3  :L5, LF
