CLOCK SPRING INSPECTION

id081000802200

1.  Disconnect the negative battery cable.

2.  Remove the driver‐side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

3.  Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

4.  Remove the column cover.

5.  Remove the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION.)

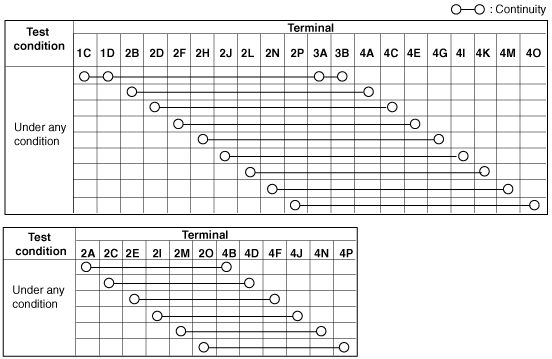

6.  Verify that the continuity is as indicated in the table.

•  If not as indicated in the table, replace the clock spring.

Note

•  When the vehicle-side connector for the clock spring is disconnected, terminals 1C, 1D are shorted to prevent unexpected operation (deployment) of the air bag module.

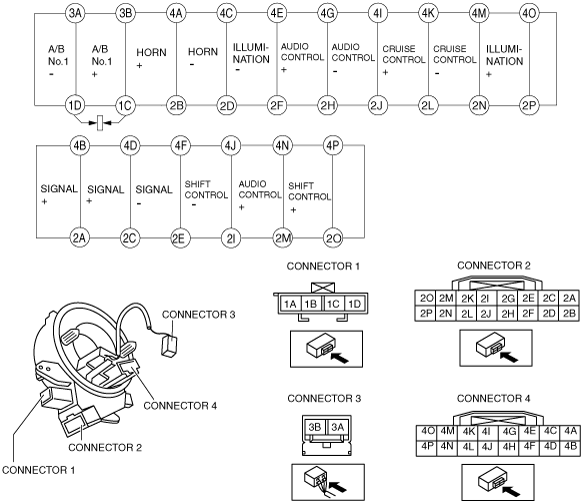

am3zzw00005800
