REAR SEAT BELT REMOVAL/INSTALLATION


id081100800800

Caution
•  The ELR (emergency locking retractor) has a spring that will unwind if the retractor cover is removed. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.

4SD

1.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(3)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
(4)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(5)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(6)  Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

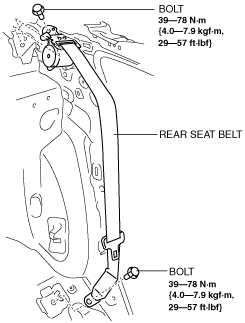

2.  Remove the bolts.

am3zzw00005807

3.  Remove the rear seat belt.

4.  Install in the reverse order of removal.


5HB

1.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(3)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
(4)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(5)  Trunk side upper trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(6)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Remove the bolts.

am3uuw00003761

3.  Remove the rear seat belt.

4.  Install in the reverse order of removal.
